ST Link on Lite ARM

Embedded Security ChipWhisperer Hardware
1

Hello,

is it possible to attach an ST Link adapter to the Chipwihsperer Lite ARM?

Regards,
Rainer

1 Like
2

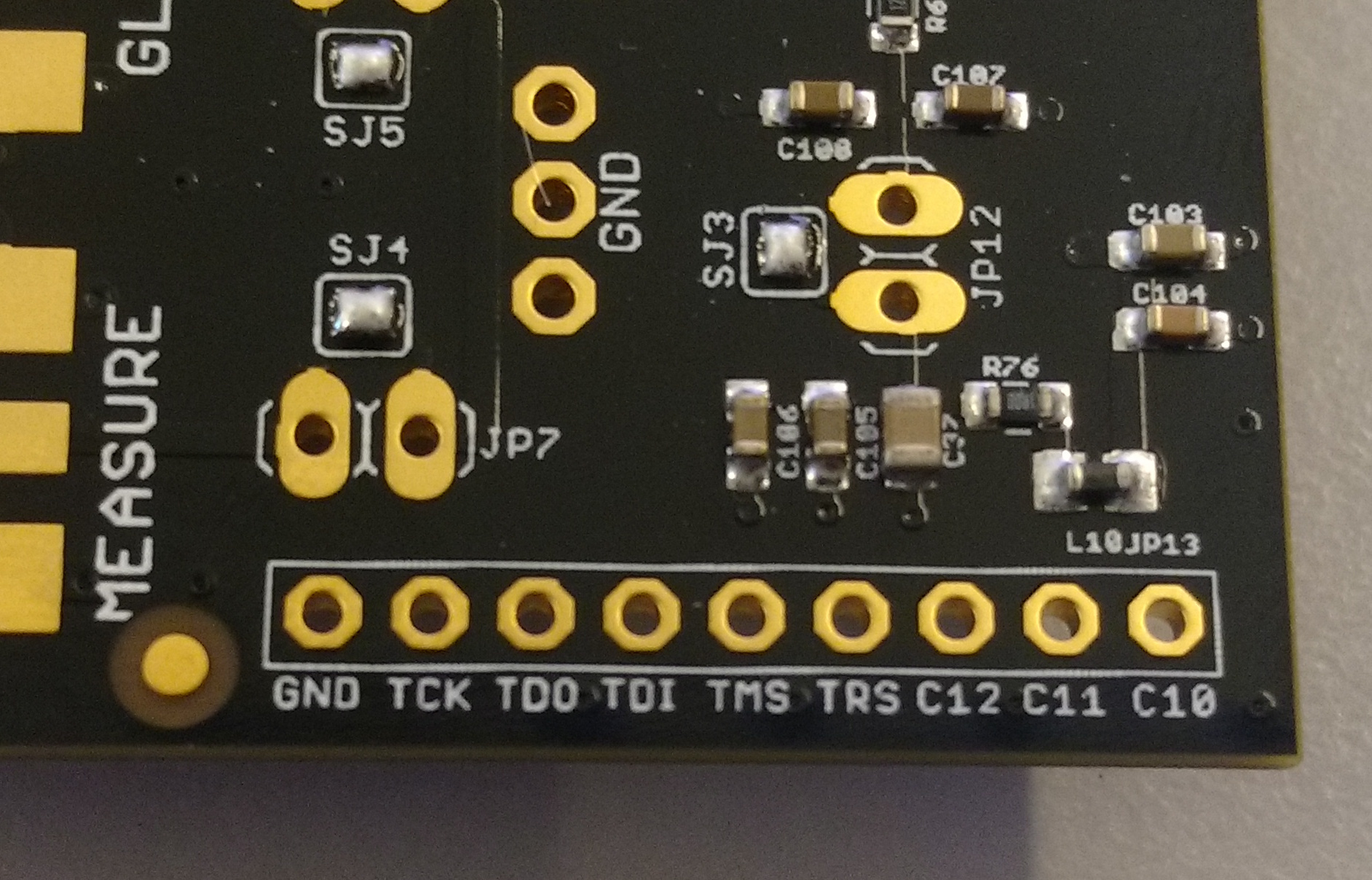

I have done that by attaching ST-link on the bottom header of the target:

ST-link%20connection
ST-link%20connection1884×1208 718 KB

Then I used the st-flash tool to flash the firmware:

st-flash --reset --format ihex write glitchsimple-CWLITEARM.hex

I hope it helped.

4

Hi Sylvain.
I am now using ST-Link V2 for programming my project to CW308T-STM32F303 board. But as I using st-flash command, I get the error saying : Failed to enter SWD mode and Failed to connect to target .

image1189×103 24.1 KB

I don’t know where I do the wrong thing or I should change some configuration on board.

Magnolia
