hello,

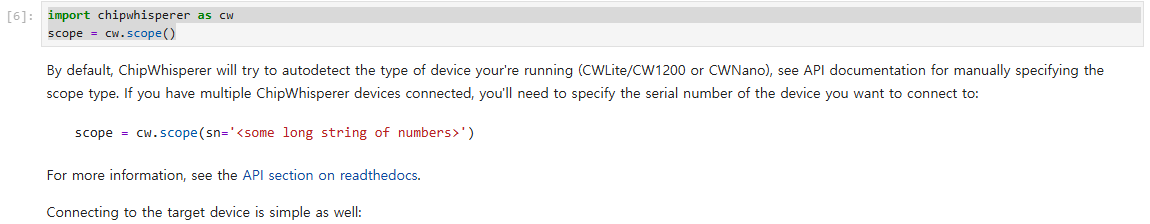

I recently followed chipwhisperer jupyter notebook tutorials,but I faced a problem in 1 - Connecting to Hardware.
I tried to upload a firmware to target, but failed.
Here is the error messages.
---------------------------------------------------------------------------
OSError Traceback (most recent call last)
Cell In[6], line 5
1 #cw.program_target(scope, cw.programmers.XMEGAProgrammer, "path/to/firmware.hex")
2 #cw.program_target(scope, cw.programmers.STM32FProgrammer, "path/to/firmware.hex")
3 #cw.program_target(scope, cw.programmers.AVRProgrammer, "path/to/firmware.hex")
4 #cw.program_target(scope, cw.programmers.SAM4SProgrammer, "path/to/firmware.hex")
----> 5 cw.program_target(scope, cw.programmers.SAM4SProgrammer, "~/ChipWhisperer/chipwhisperer/firmware/mcu/simpleserial-base/simpleserial-base-CWHUSKY.hex")
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\__init__.py:181, in program_target(scope, prog_type, fw_path, **kwargs)
179 prog._logging = None
180 prog.open()
--> 181 prog.find()
182 prog.erase()
183 prog.program(fw_path, memtype="flash", verify=True)
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\capture\api\programmers.py:129, in save_and_restore_pins.<locals>.func_wrapper(self, *args, **kwargs)
126 target_logger.debug('Changing {} pin configuration'.format(pin_setup))
128 try:
--> 129 val = func(self, *args, **kwargs)
130 finally:
131 target_logger.debug('Restoring {} pin configuration'.format(pin_setup))
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\capture\api\programmers.py:185, in SAM4SProgrammer.find(self, power_cycle)
183 prog = self.get_prog()
184 target_logger.info("Connecting to SAMBA")
--> 185 prog.con(self.scope)
186 target_logger.info("Done!")
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\hardware\naeusb\bootloader_sam3u.py:250, in Samba.con(self, port, usbmode)
247 res = ser.read(2)
248 # print(res)
--> 250 cid = self.chip_id()
252 target_logger.info('FWUP: CID = %04x' % cid)
254 #Originally this was used to limit to SAM3U
255 #eproc = (cid >> 5) & 0x7
256 #arch = (cid >> 20) & 0xff
257 #if eproc == 3 and ((0x80 <= arch <= 0x8a) or (0x93 <= arch <= 0x9a)):
258 # target_logger.info('FWUP: Detected SAM3')
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\hardware\naeusb\bootloader_sam3u.py:308, in Samba.chip_id(self)
305 def chip_id(self):
306 """ Read chip-id """
--> 308 vector = self.read_word(0x00)
310 # If the vector is a ARM7TDMI branch, then assume Atmel SAM7 registers
311 if ((vector & 0xff000000) == 0xea000000):
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\hardware\naeusb\bootloader_sam3u.py:333, in Samba.read_word(self, addr)
331 if len(resp) < 4:
332 target_logger.debug("Timeout on read from {:04X}".format(addr))
--> 333 raise IOError("timeout")
335 value = (resp[3] << 24 | resp[2] << 16 | resp[1] << 8 | resp[0] << 0)
336 target_logger.debug("Read {:04X} from {:02X}".format(value, addr))
OSError: timeout

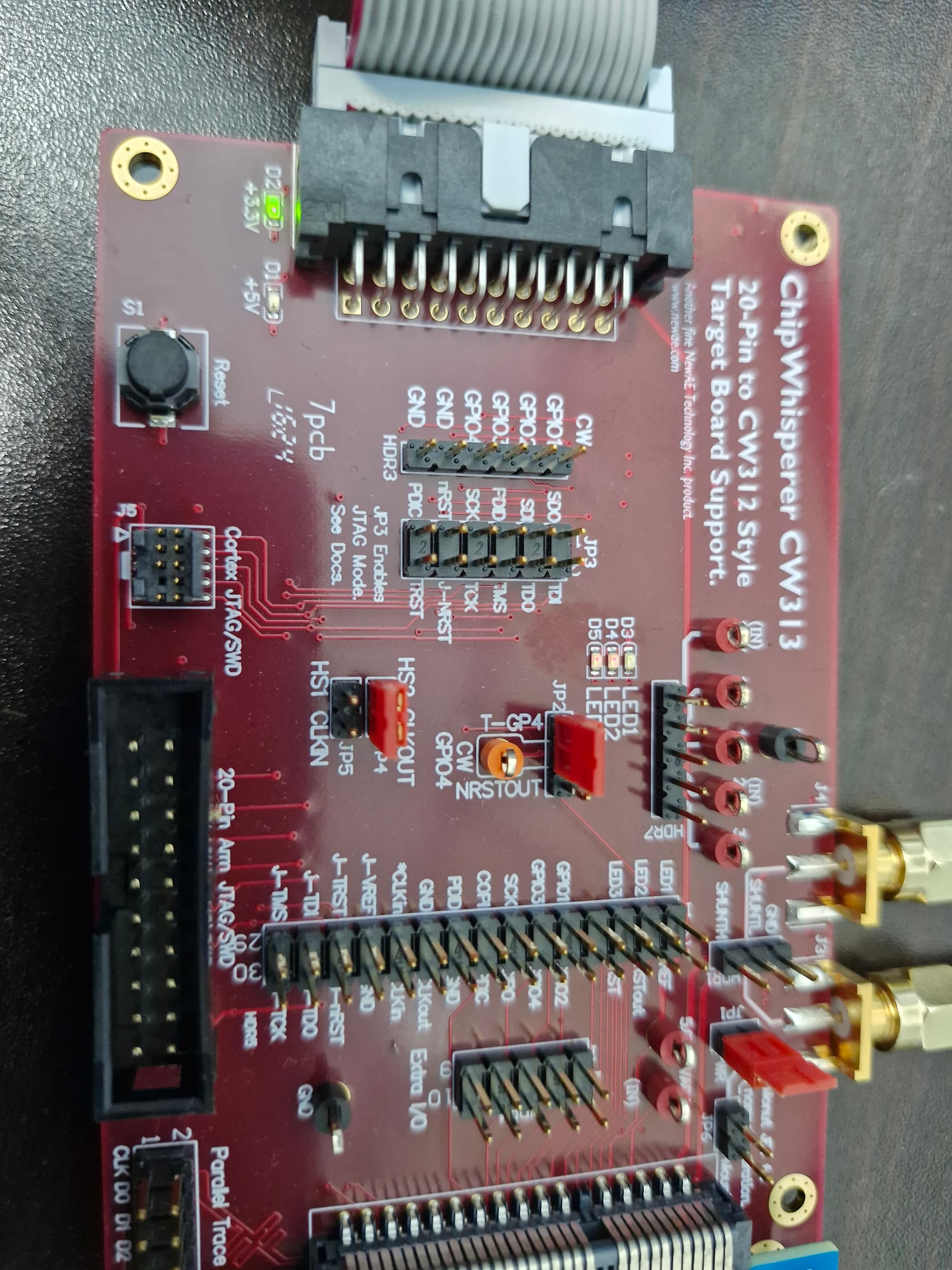

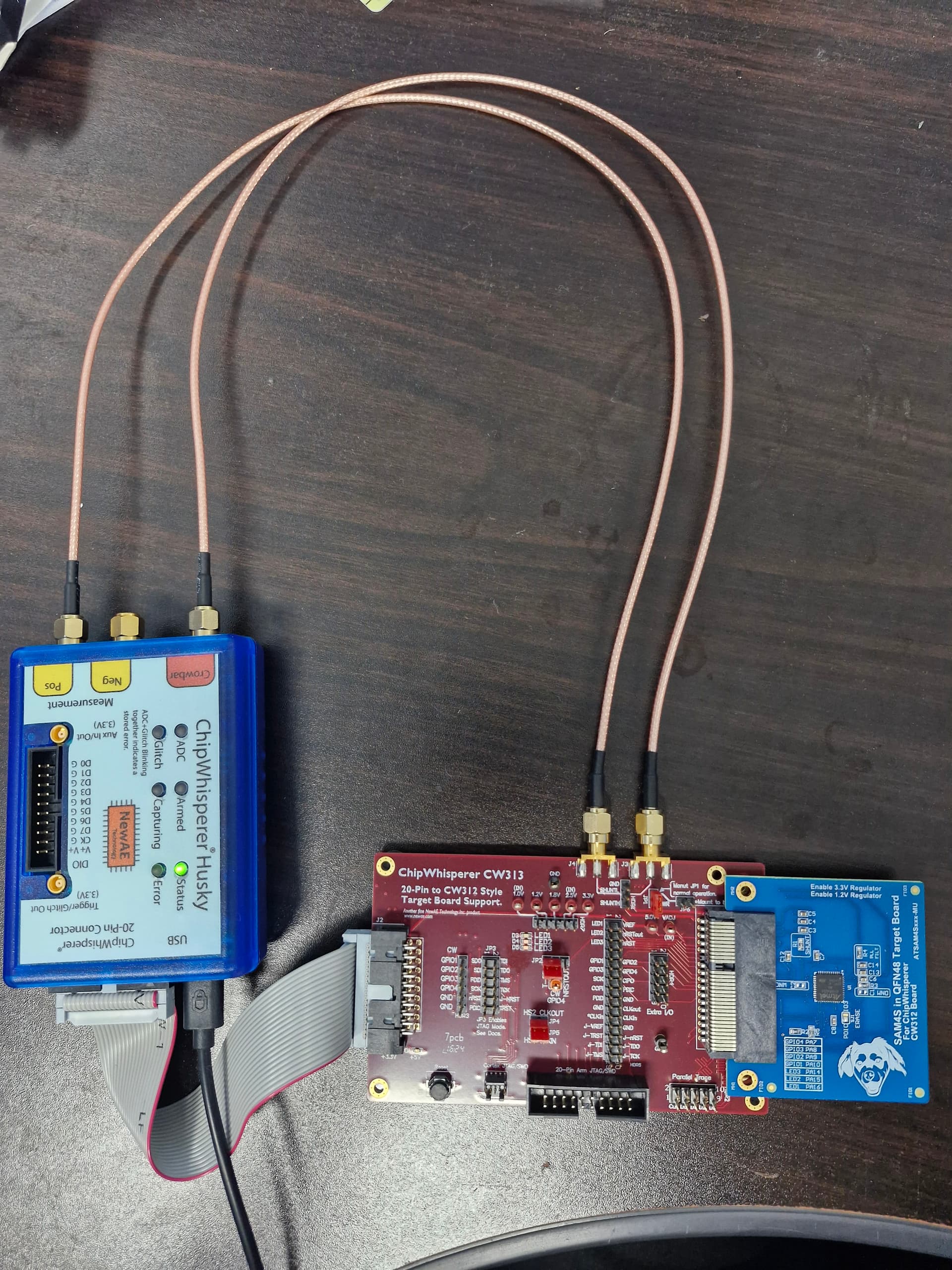

I used ChipWhisperer Husky, ChipWhisperer CW313, SAM4S Target Board.
How do I solve it?
