I have broken apart a CW-Lite and need to attach the capture section to a CW310 Bergen board, Please provide the instructions necessary to to attach it. Thanks!

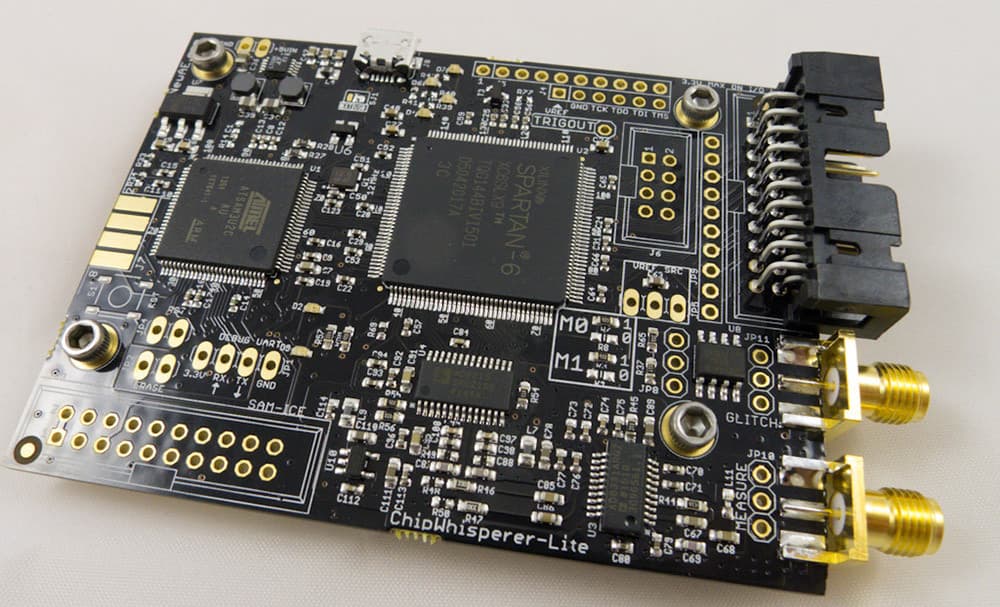

You’ll simply need to solder SMA and 20-pin connectors and provide the appropriate cables:
The connectors and cables needed are in this pack, which we don’t have in stock at the moment.
Someone created this Mouser BOM with all required parts, however there are extras; check the part count before you order:
https://www.mouser.ca/Tools/Project/Share?AccessId=64c5bad700
1 Like
Also is there any soldering to do on the CW310 board, and how should the connections be made
No soldering on the 310.
20-pin cable goes to the blue header at the top-right corner;
“measure” SMA goes to one of the 3 SMA ports (usually the top one).
Do go through our CW310 documentation before you start using it:
