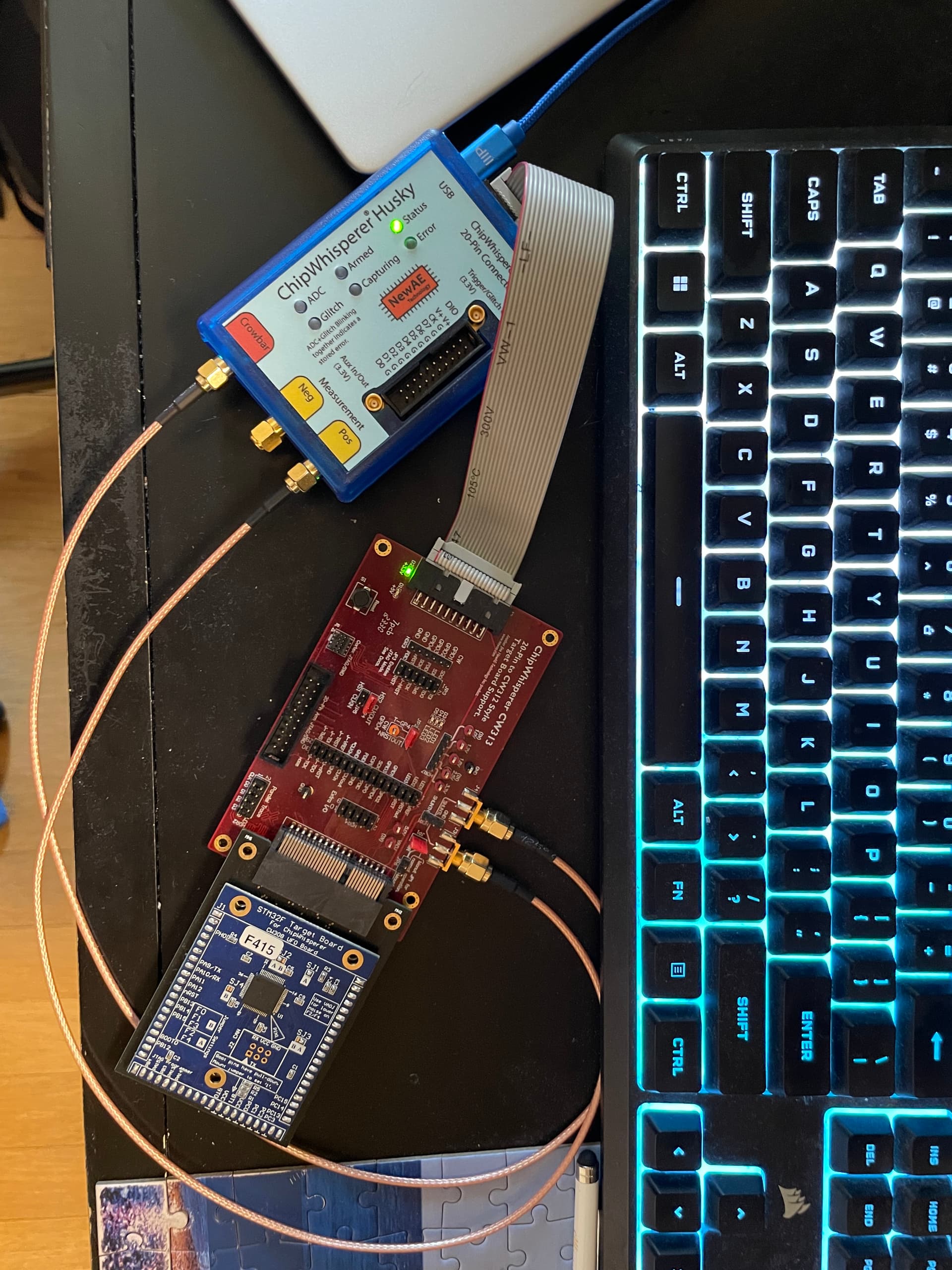

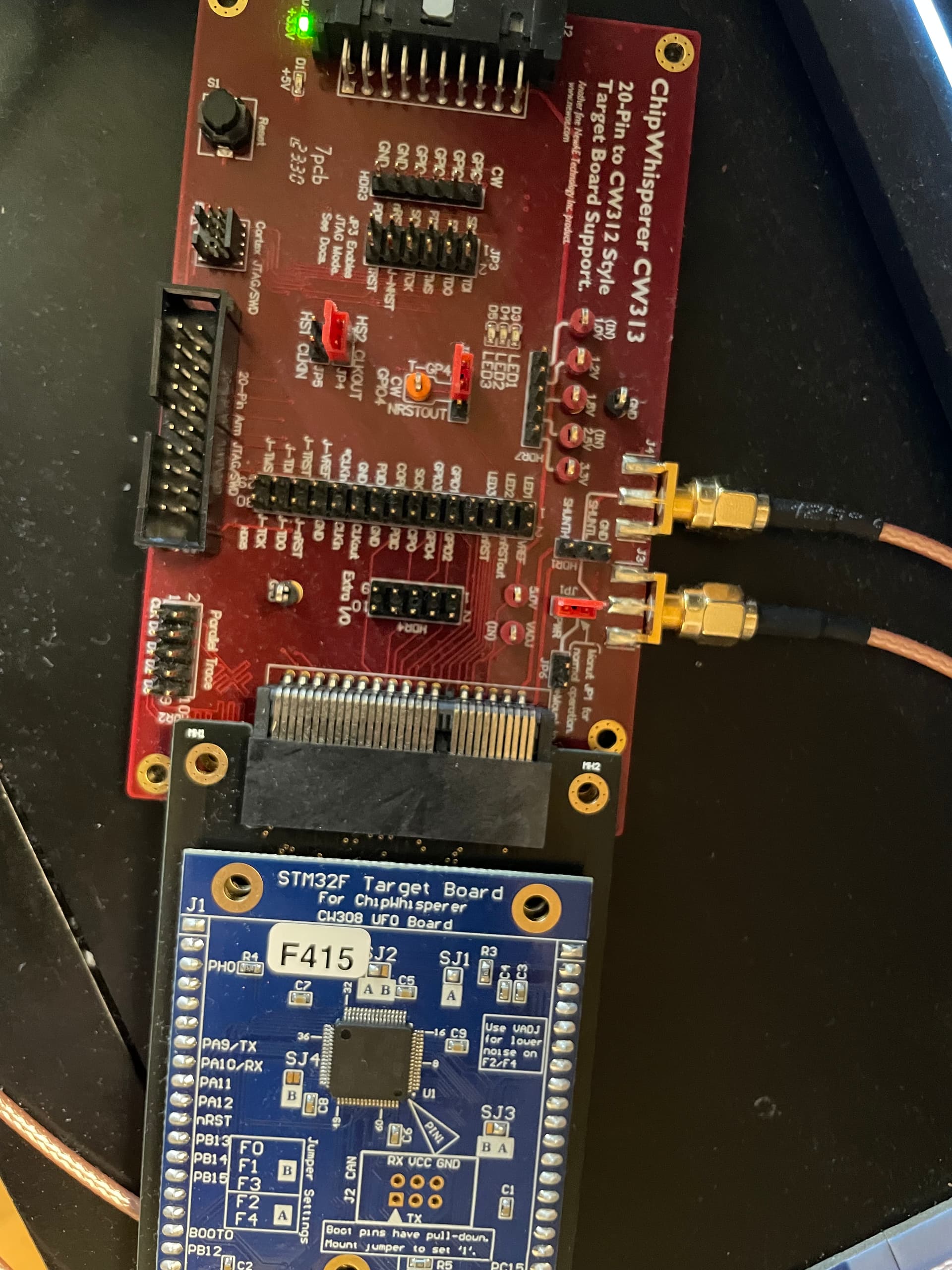

In the notebook 1 “connecting to hardware” when i use SAM4S i dont face any error, but when i switch to stm32f connected to cw313 with chipwhisperer husky and i try to programm the target as shown bellow
i get the following error
Failed to detect chip. Check following:
1. Connections and device power.
2. Device has valid clock (or remove clock entirely for internal osc).
3. On Rev -02 CW308T-STM32Fx boards, BOOT0 is routed to PDIC.
---------------------------------------------------------------------------
OSError Traceback (most recent call last)
Cell In[16], line 2
1 fw_path = "../../../firmware/mcu/simpleserial-base/simpleserial-base-CWLITEARM.hex"
----> 2 cw.program_target(scope,cw.programmers.STM32FProgrammer, fw_path)
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\__init__.py:181, in program_target(scope, prog_type, fw_path, **kwargs)
179 prog._logging = None
180 prog.open()
--> 181 prog.find()
182 prog.erase()
183 prog.program(fw_path, memtype="flash", verify=True)
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\capture\api\programmers.py:129, in save_and_restore_pins.<locals>.func_wrapper(self, *args, **kwargs)
126 target_logger.debug('Changing {} pin configuration'.format(pin_setup))
128 try:
--> 129 val = func(self, *args, **kwargs)
130 finally:
131 target_logger.debug('Restoring {} pin configuration'.format(pin_setup))
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\capture\api\programmers.py:420, in STM32FProgrammer.find(self)
418 target_logger.warning("(tio1, tio2) != ('serial_rx', 'serial_tx')")
419 target_logger.warning("Did you forget to call scope.default_setup()?")
--> 420 sig, chip = stm32f.find()
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\hardware\naeusb\programmer_stm32fserial.py:38, in close_on_fail.<locals>.func_wrapper(self, *args, **kwargs)
35 @wraps(func)
36 def func_wrapper(self, *args, **kwargs):
37 try:
---> 38 return func(self, *args, **kwargs)
39 except:
40 self.close_port()
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\hardware\naeusb\programmer_stm32fserial.py:174, in STM32FSerial.find(self, logfunc)
171 logfunc = print_fun
173 try:
--> 174 self.initChip()
175 except IOError:
176 logfunc("Failed to detect chip. Check following: ")
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\hardware\naeusb\programmer_stm32fserial.py:38, in close_on_fail.<locals>.func_wrapper(self, *args, **kwargs)
35 @wraps(func)
36 def func_wrapper(self, *args, **kwargs):
37 try:
---> 38 return func(self, *args, **kwargs)
39 except:
40 self.close_port()
File ~\ChipWhisperer\chipwhisperer\software\chipwhisperer\hardware\naeusb\programmer_stm32fserial.py:354, in STM32FSerial.initChip(self)
351 fails += 1
353 self.releaseChip()
--> 354 raise IOError("Could not detect STM32F, check connections, BOOT MODE entry setup")
OSError: Could not detect STM32F, check connections, BOOT MODE entry setup
In a similar topic in the forum the problem is a previous version used, but i currently use the 6.0 so i dont know what is wrong.
