How to test and see the log from cw305

[stanley]

My setup:

CW-lite, CW305 connect with 20 pins connector

I follow GitHub - newaetech/CW305-Arm-DesignStart: Instruction and files for porting Arm DesignStart to CW305. to update the bitfile

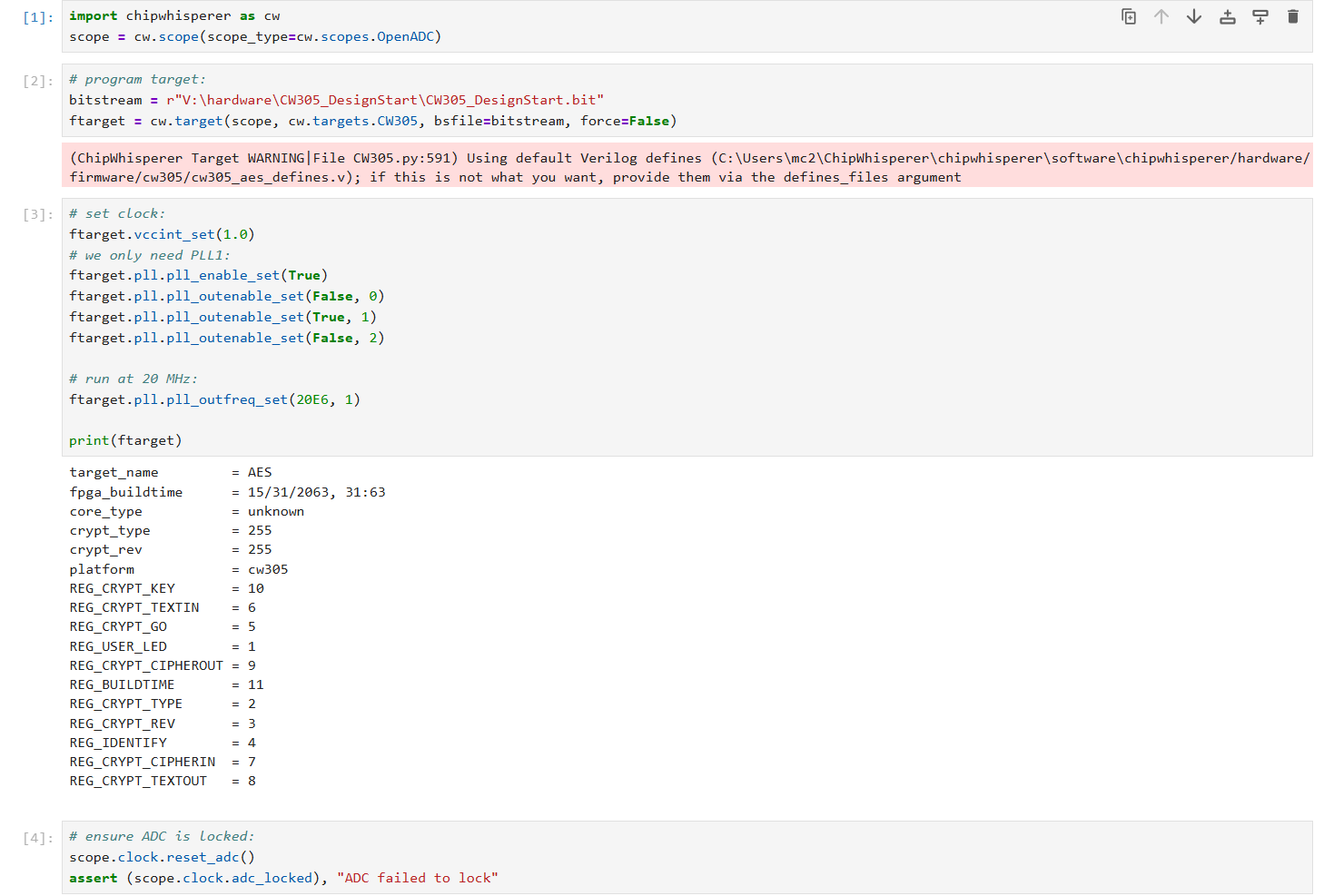

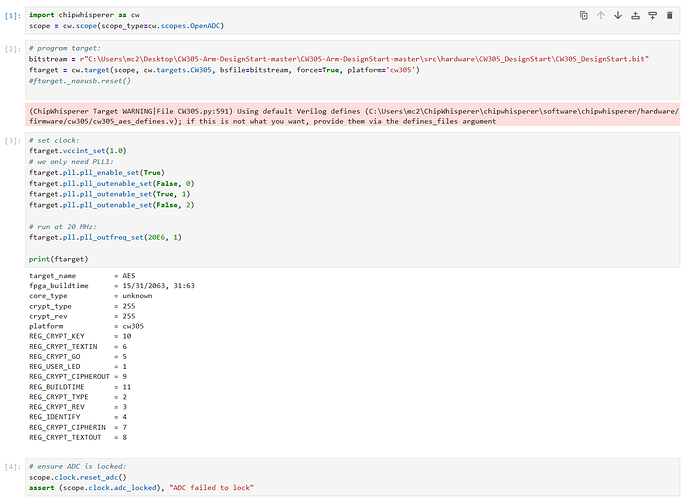

and run setup design start python code below, it seems like CW305 default use AES bitfile ? not my DesignStart bitfile.

And after this, my CW-Lite red LED is on (locked)

Right now I want to figure out how to communicate with Target using cw API through jupyter

like I saw a cw_main.c code down below, maybe there are some ways I can write ‘i’
and read the output throught uart to validate the bitfile is fine ?

Can someone give me a demo code or examples?

int main(void)

{

    uint8_t tmp\[KEY_LENGTH\] = {DEFAULT_KEY};



    trigger_setup(); //defined to InitialiseGPIO

    init_uart();     //defined to InitialiseUART



    aes_indep_init();

    aes_indep_key(tmp);

    /\* Uncomment this to get a HELLO message for debug:

    info(tmp)

    \*/

    simpleserial_init();

    simpleserial_addcmd('k', 16, get_key);

    simpleserial_addcmd('p', 16, get_pt);

    simpleserial_addcmd('x', 0, reset);

    simpleserial_addcmd('i', 0, info);

    simpleserial_addcmd('m', 18, get_mask);

    while(1) {

      simpleserial_get();

    }

}

Thanks!

[jpthibault]

Follow the instructions here: GitHub - newaetech/CW305-Arm-DesignStart: Instruction and files for porting Arm DesignStart to CW305.

[stanley]

Is GitHub - newaetech/DesignStartTrace: Adding trace to DesignStart for easier side-channel analysis on the CW305 target. Also supports PhyWhisperer. a one example that I can do for CW-Lite & CW305 Target ?

[stanley]

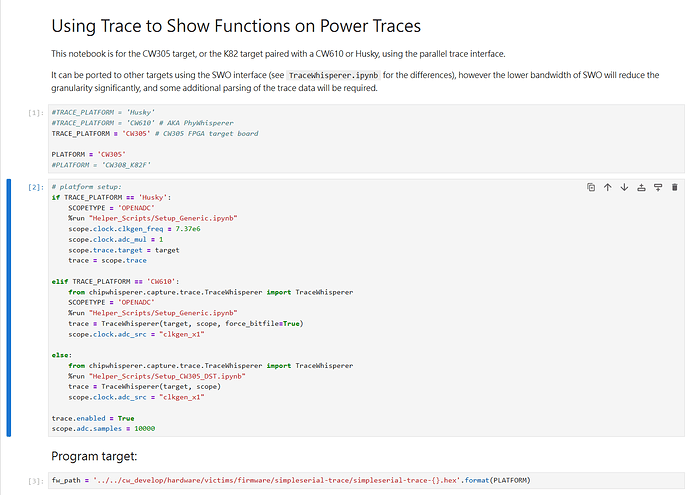

Right now I’m using DesignStartTrace to run “pc_sample_annotate

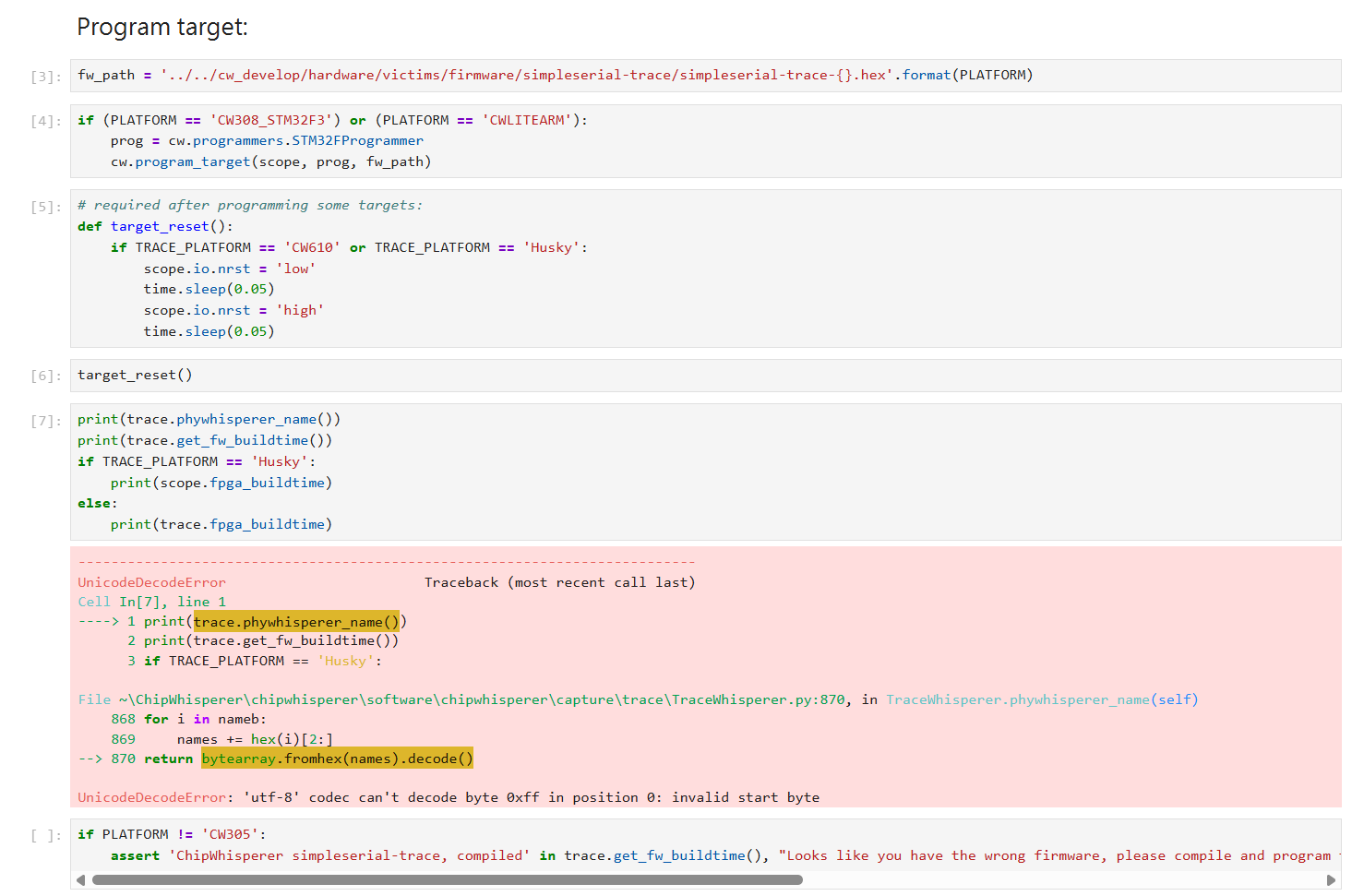

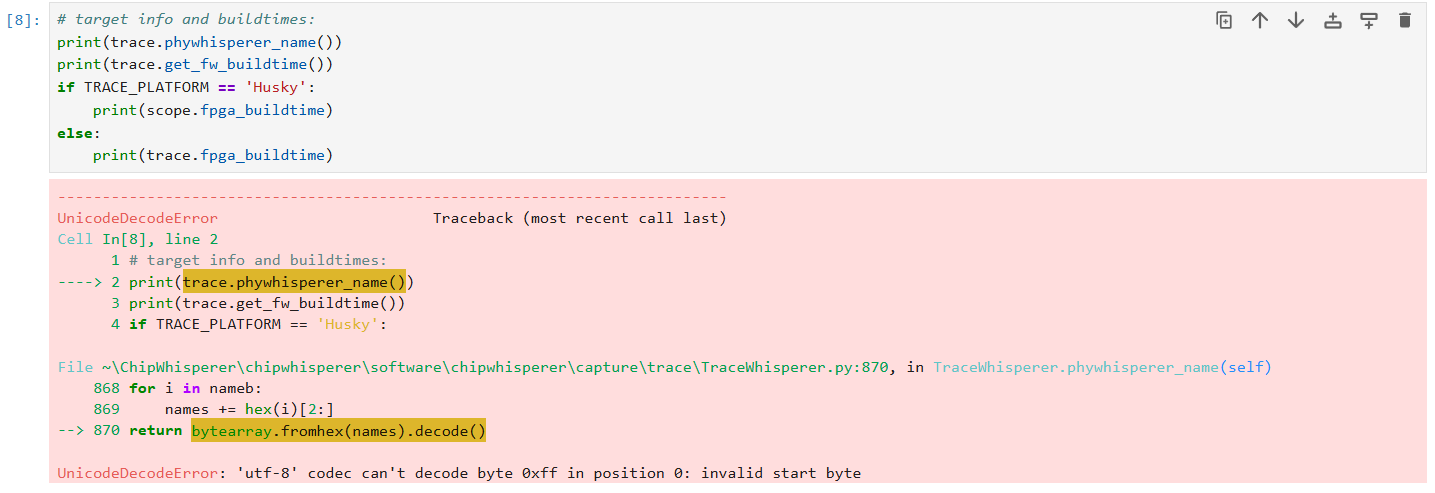

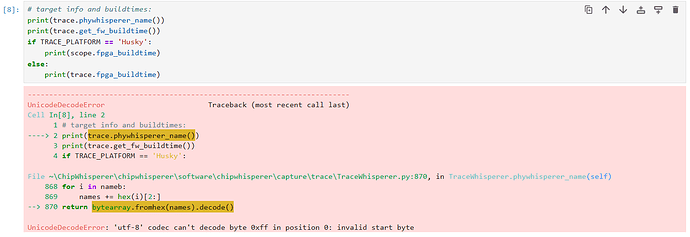

I got the same error when i restart and try TraceWhisperer example

and I’m pretty sure that Setup_CW305_DST I change the bitstream path that generate from https://github.com/stanley-666/CW305-Arm-DesignStart

Am I missing some steps?

[jpthibault]

If you had already programmed the CW305 with a different bitfile, the DesignStartTrace bitfile will not get written when you run these notebooks. Try simply powering the CW305 off, then back on, and try the notebook again.

[stanley]

Thanks for the reply, I disconnect all wires on CW-Lite and CW305.
Then I connect them back and power on to run the notebook again it got the same errors.

[stanley]

• Hi,

  I have problem that when I follow

  GitHub - newaetech/CW305-Arm-DesignStart: Instruction and files for porting Arm DesignStart to CW305.

  • right-click in the design window, select “Add Module” and select clk_select.v.
  • Add a connection from clk_select_0->sys_clock to the sys_clock input pin.

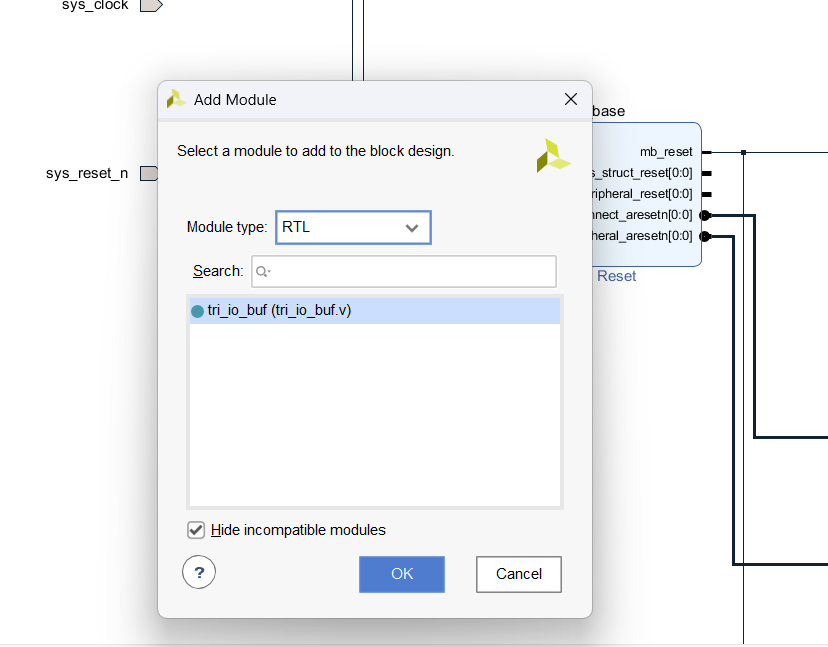

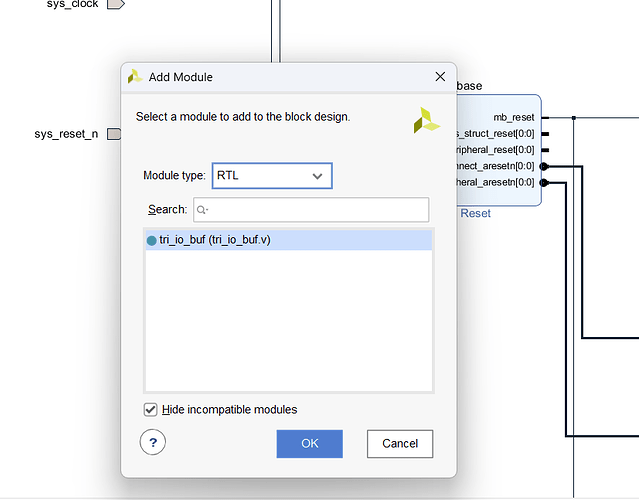

  I don’t see any clk_select.v

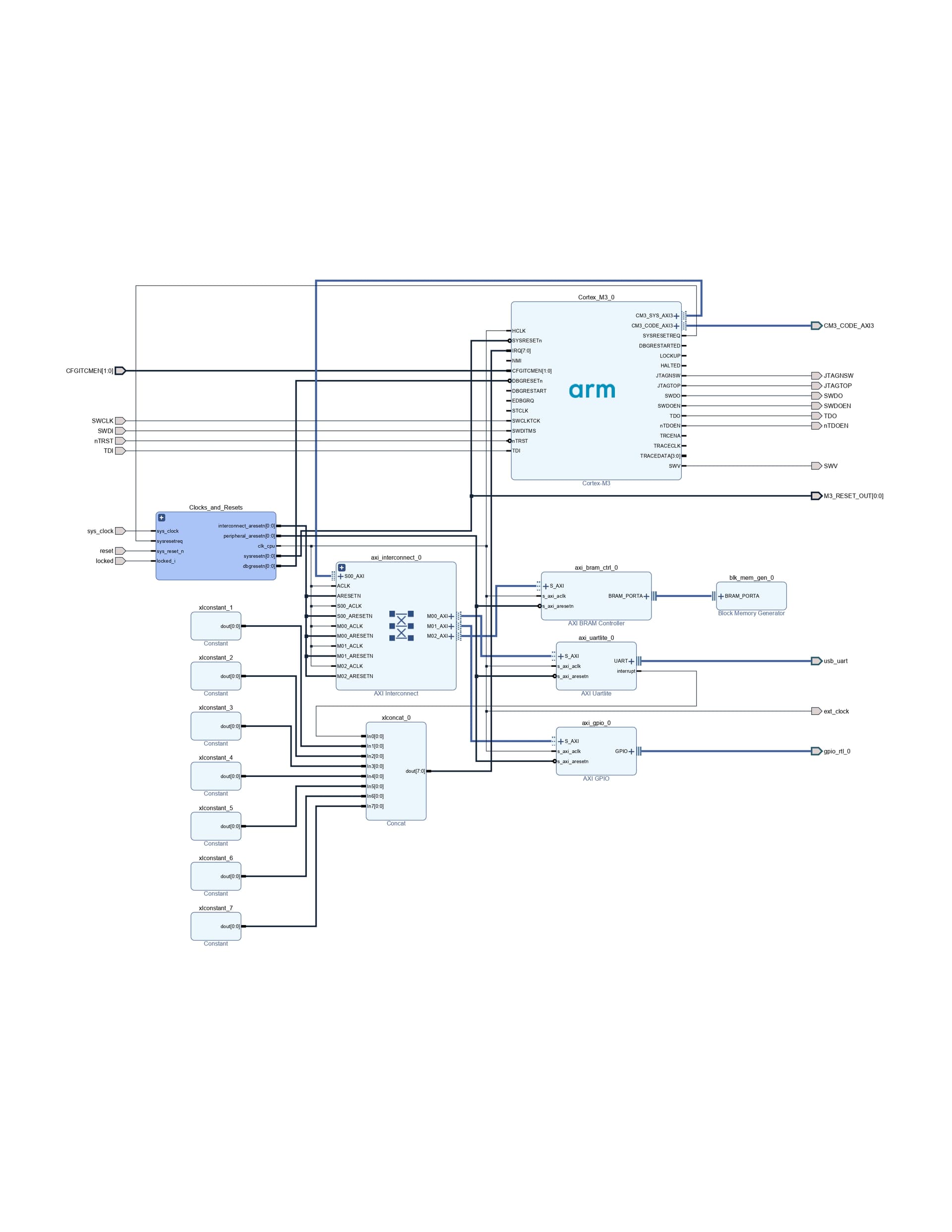

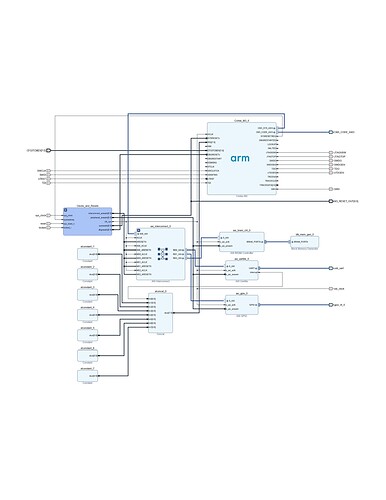

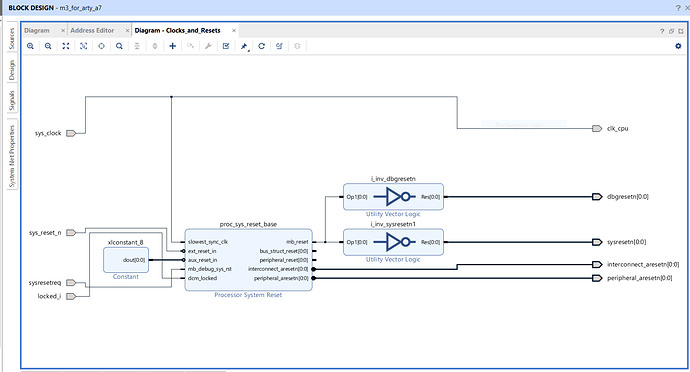

  I just saw the selection of tri_io_buf.v so I skip these two steps, and follow all instructions behind and my clock and reset block is the same as




  I’m pretty sure that I check everything ..
  and I pass the validation design.

  • upgrade IP blocks as required: next to the message “The design has 23 blocks that should be upgraded.”, click on “Report IP Status”, then “upgrade selected”

  but i only saw 18 blocks that should be upgraded.

  Is clk_select affect cw305 clk led7?

  because I unplugged everything (CW-Lite scope & CW305 target )

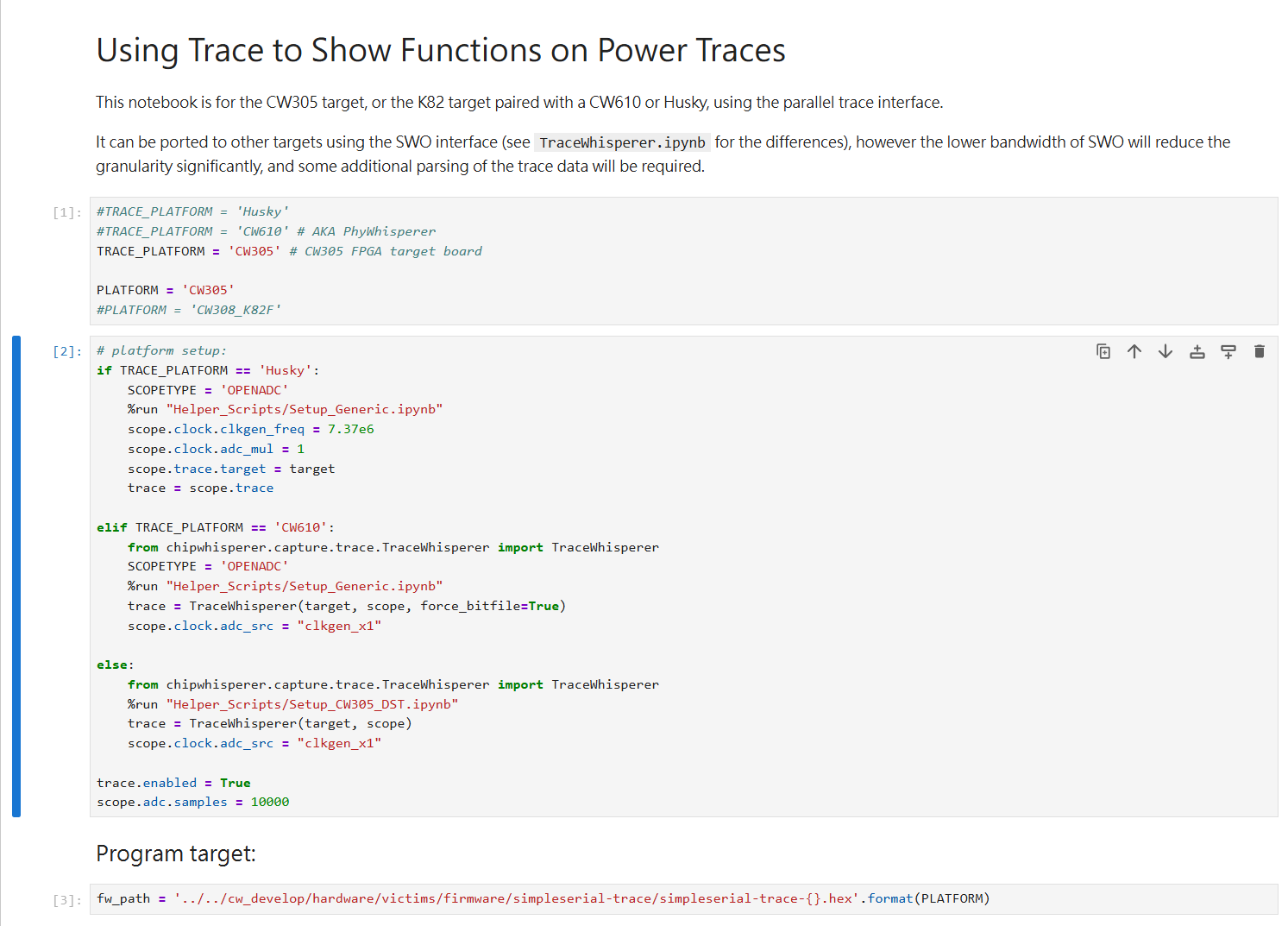

  and rerun the TraceWhisperer.ipynb here
  I set

  TRACE_PLATFORM = 'CW305'
  PLATFORM = 'CW305'
  TRACE_INTERFACE = 'parallel'
  RAW_CAPTURE = False


  and use the bitstream that generate from update the MMI file

  led5, 6, 7 are all off, not responding.

  Is there anything I can fix these issues

  Thanks

[stanley]

More infos

Unplugged cw-lite usb cable, cw305 usb cable and power everything off and replugged in

rerun

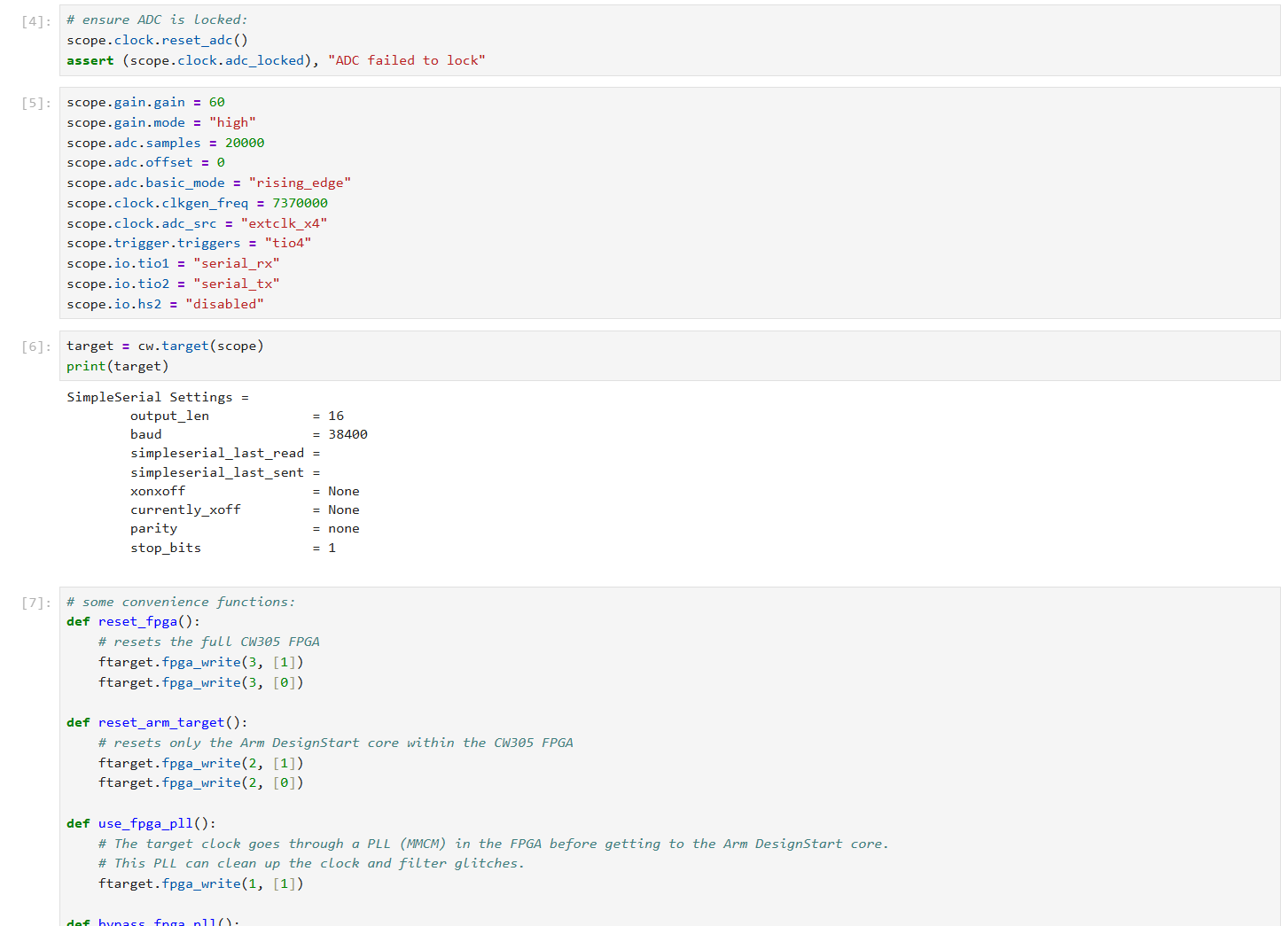

CW305-Arm-DesignStart/src/jupyter/Setup_DesignStart.ipynb at master · newaetech/CW305-Arm-DesignStart

[jpthibault]

@stanley

I don’t see any clk_select.v
I just saw the selection of tri_io_buf.v so I skip these two steps

clk_select.v is here. You must not skip any steps.

[stanley]

I follow the steps inorder
right-click in the design window, select “Add Module” and select clk_select.v.

• Add a connection from clk_select_0->sys_clock to the sys_clock input pin.

  there is no clk_select.v file

  I know where the “clk_select.v” but follow the instructions

[jpthibault]

This is a “how do I use Vivado” question and outside the bounds of our support. Our instructions are clear and have been successfully used by others, but they do require prior experience with Vivado.

[stanley]

Ok, thanks

Look like I have the same problem here CW305-Arm-DesignStart : clock signal not toggling - Embedded Security / ChipWhisperer Hardware - NewAE Forum
