Increase sampling rate for trace with CWLite

Embedded Security
1

Hi all, I am doing side channel analysis for PUF. I am using CWLite and CW305 target board to implement my circuit and trace collection. However, there is a problem in my trace signal. Due to short time executing of my PUF, the trace is 16 values in length by default. So to make my trace is longer, I try to increase the sampling rate of CWLite by changing config as following:

print("SETTING FPGA CLOCKS IN")
target.pll.pll_enable_set(True) #Enable PLL chip
target.pll.pll_outenable_set(False, 0) # Disable unused PLL0
target.pll.pll_outenable_set(True, 1)  # Enable PLL
target.pll.pll_outenable_set(False, 2) # Disable unused PLL2

target.pll.pll_outfreq_set(4E6, outnum=1)

print("CLOCK SETUP")
scope.clock.adc_src = "clkgen_x4" #can be clkgen_x1, clkgen_x4, extclk_x1, extclk_x4
scope.clock.reset_adc() # make sure the DCM is locked

scope.adc.timeout = 0.1

#These are only relevant if clkgen (adjustable clock) is being used, if extclk or extclk_x4 is being used these are ignored
scope.clock.clkgen_src = "extclk"
scope.clock.clkgen_mul = 8

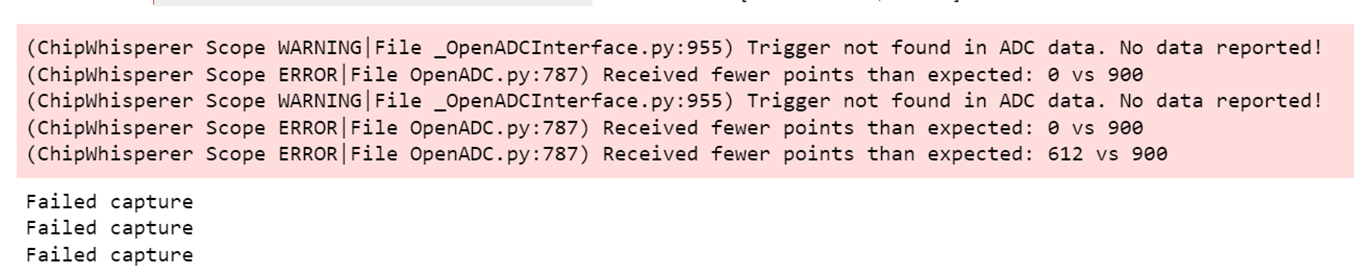

After that, the length of trace is much bigger with 128 values. However, I got the error during collecting data:

image1354×275 137 KB

Actually, the error is disappeared if I reduce the value of scope.clock.clkgen_mul=4.
Please help me to solve this error, and is there a way to increase the sampling rate of measuring in CWLite?

2

Hi,

I’d recommend taking a look at scope.clock to make sure that the DCMs are locked. You do lock the ADC DCM in your code, but you change settings afterwards which can cause it to become unlocked again. You also don’t lock the clkgen DCM afterwards either. You may also want to increase scope.adc.timeout to something closer to 1, just to make sure that’s not the cause.

I’d have to check, but you may want to try setting scope.clock.extclk_freq = 4E6. I think that’s only used for setting clocks via scope.clock.clkgen_freq, but I could be mistaken.
