Today, after long time, I find the time for study and experiment with PicoEMP. At the end I have some questions, I thank in advance anyone who can clarify some concepts that are not so much clear to me.
I have 3 TIPS A-B-C, and a EMF Probe. For each TIP I have post the oscilloscope resulting Wave.
1st Question:
What TIPs are CW and CCW? I don’t have find a tutorial that explane It or I missed it.
2nd Question:
Is the probe in the right orientation for the test? If I turn the probe 180° the wave is inverted, so I don’t understand if the wave on the scope is right or not according to the tip orientation.
3rd Question:
For each TIP, if used on TOP of a microprocessor, what charge would they induce? Positive or negative?
4th Question:
When is best to use CW and when to use CCW?

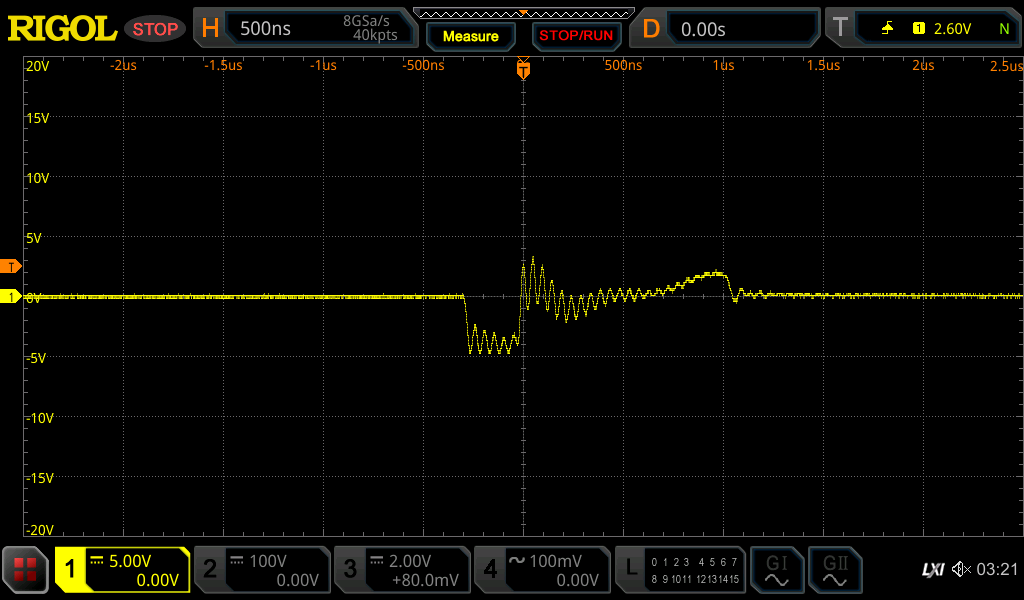

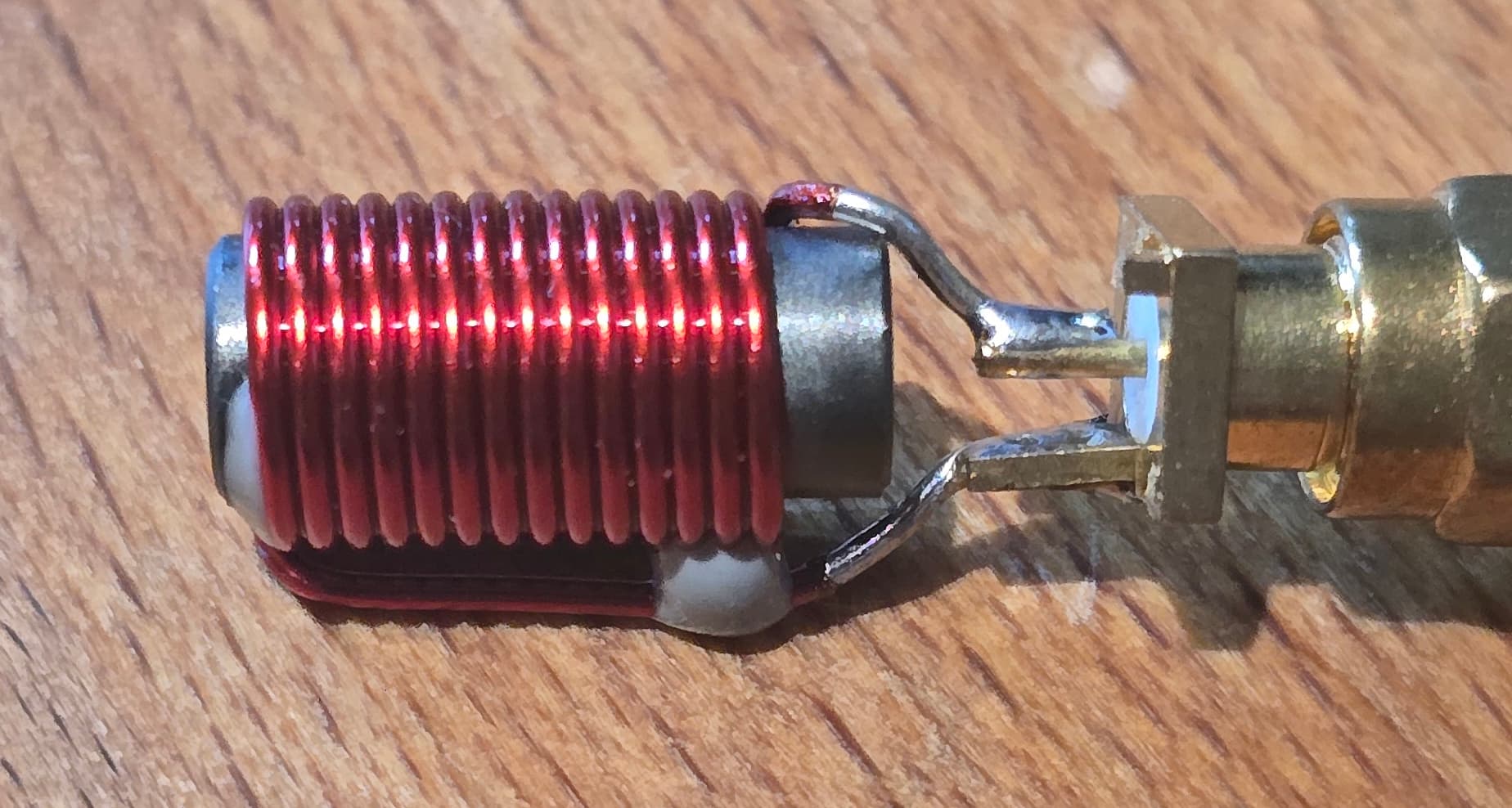

TIP-A

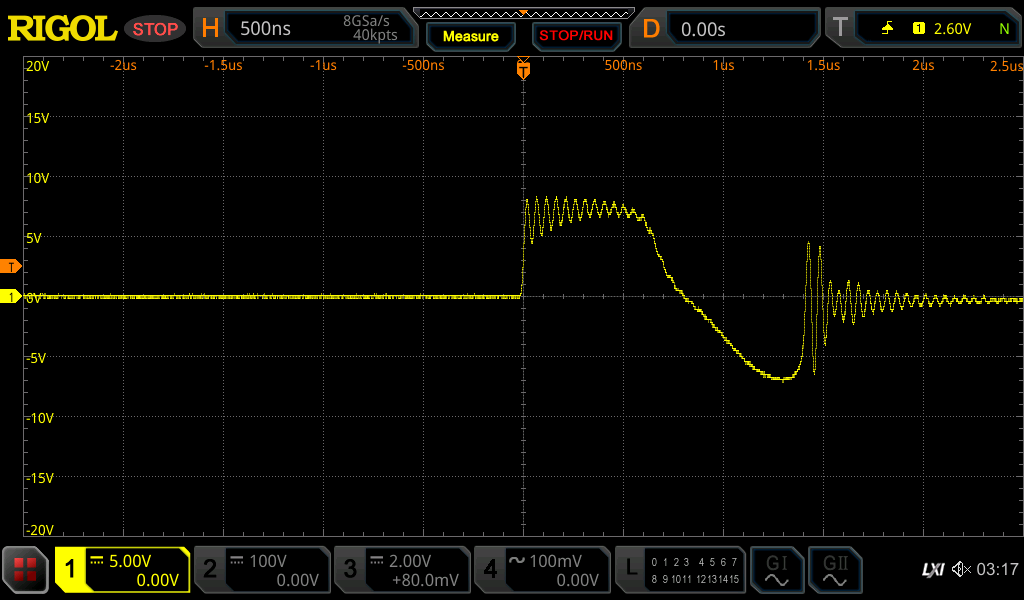

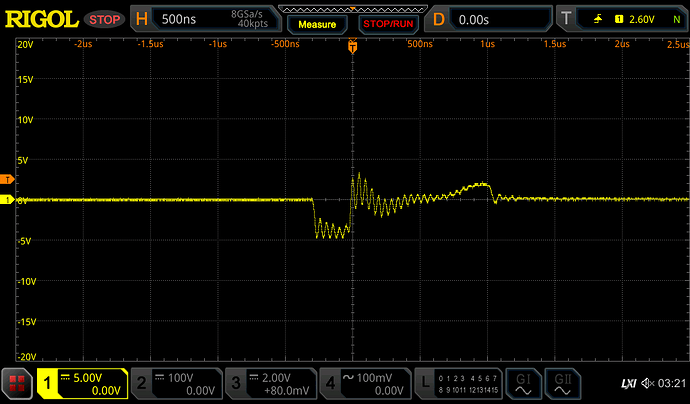

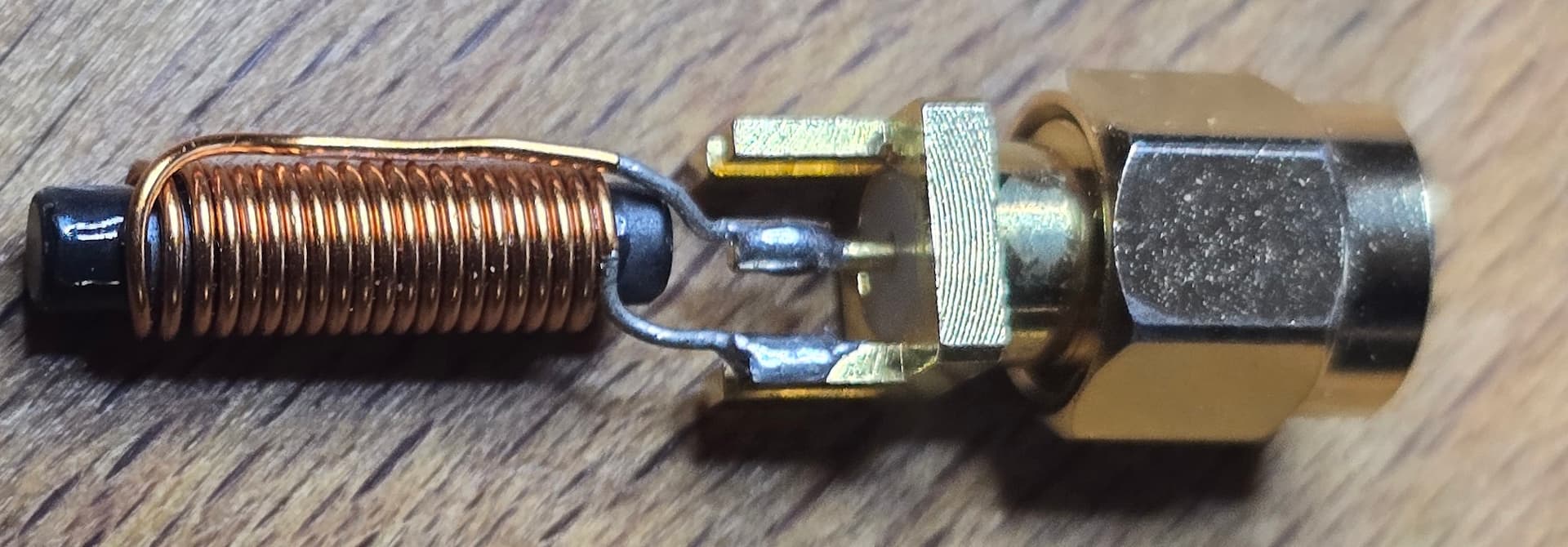

TIP-B

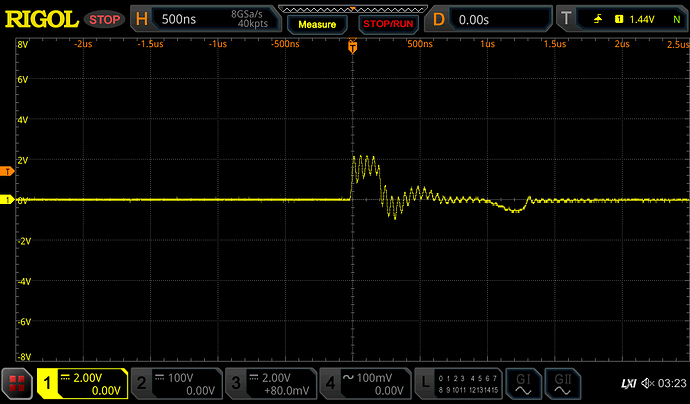

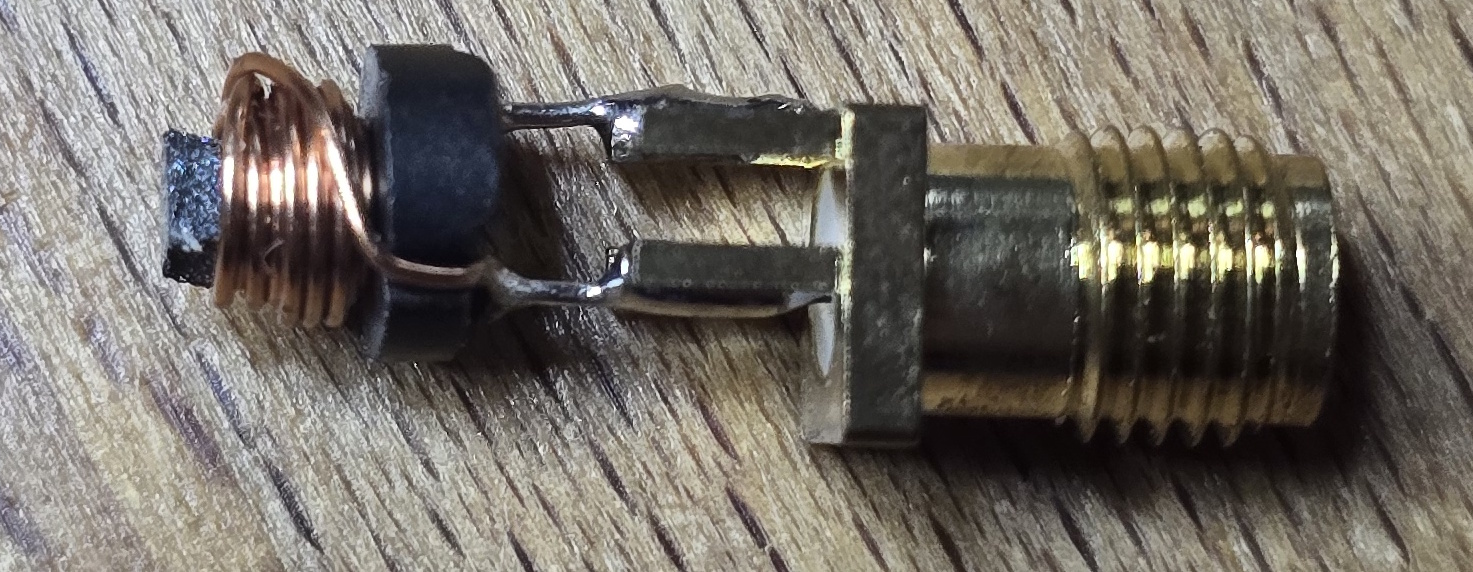

TIP-C

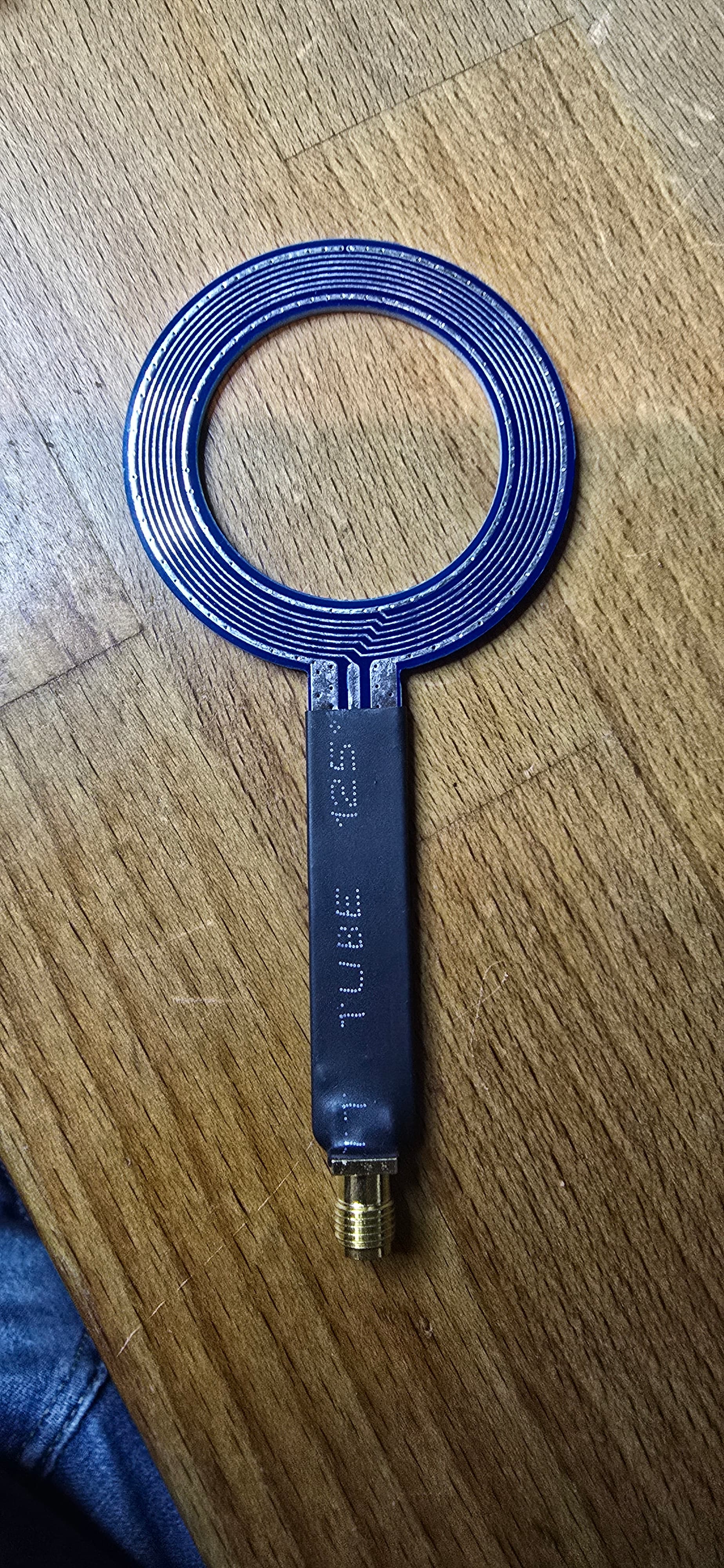

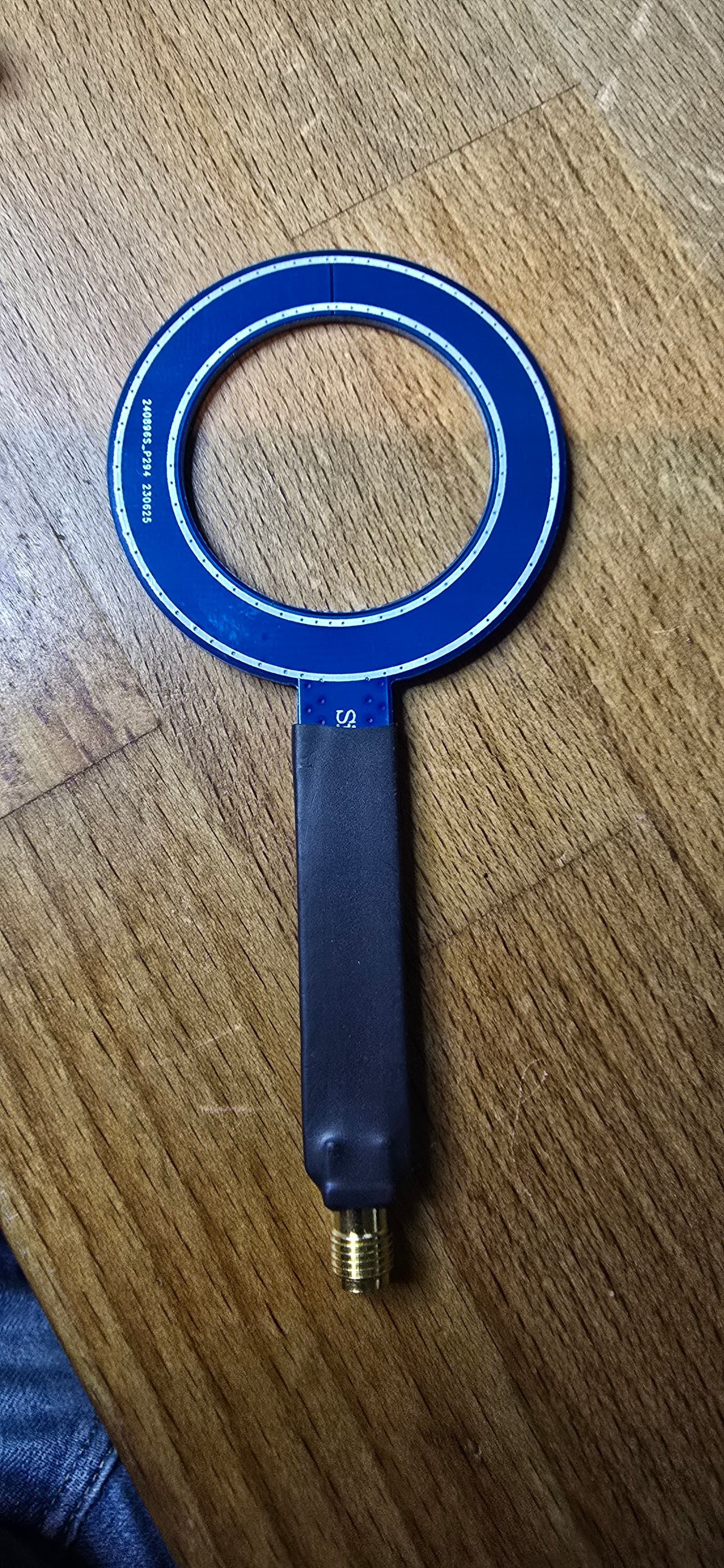

Probe side1
Probe side2

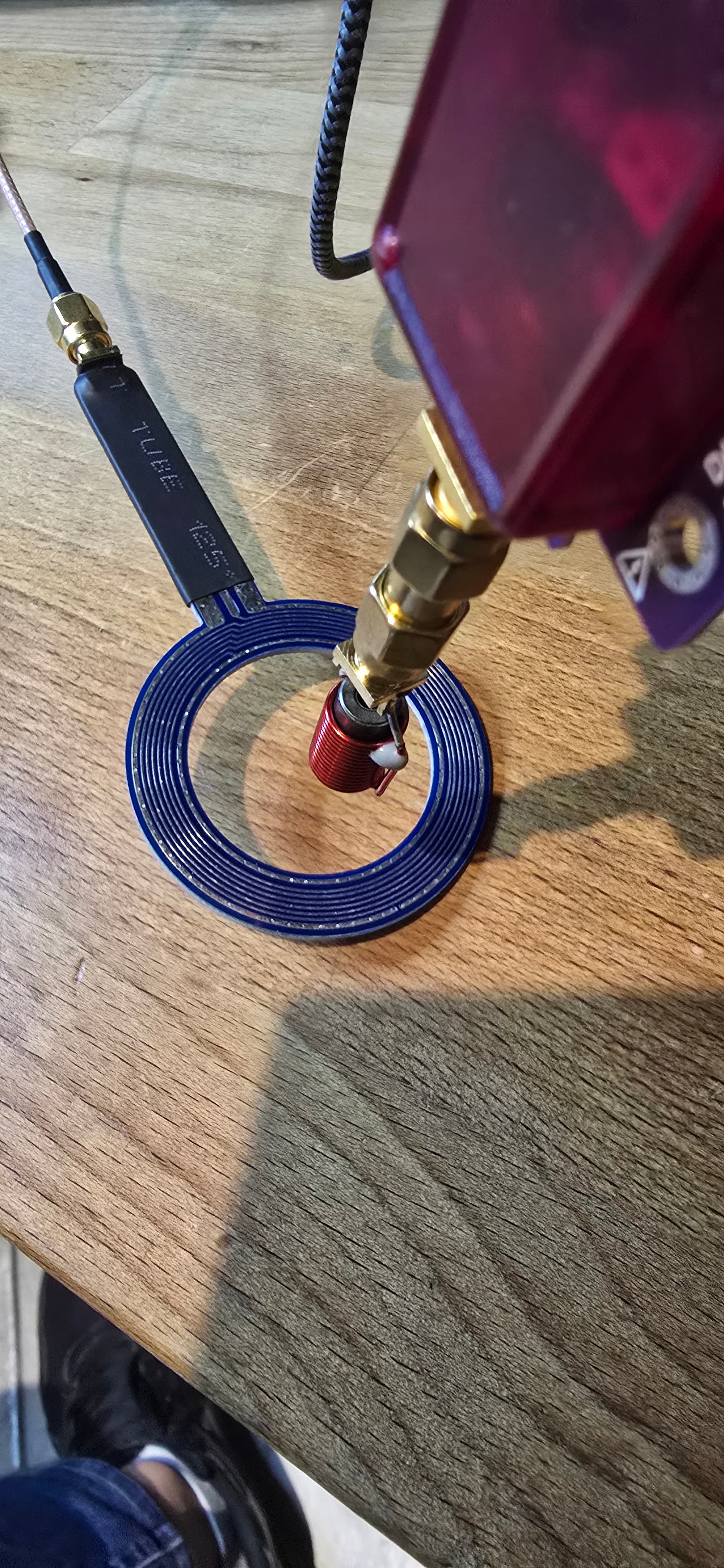

Side of the tests
I also have posted the same question on
Thank you
