Question About OpenADC Scope

Hello,

We recently got the password recovery lab working on the CWXMEGA128 Lite kit.

https://chipwhisperer.readthedocs.io/en/latest/tutorials/courses_sca101_soln_lab%202_1b%20-openadc-cwlitexmega.html#tutorial-courses-sca101-soln-lab-2-1b-openadc-cwlitexmega

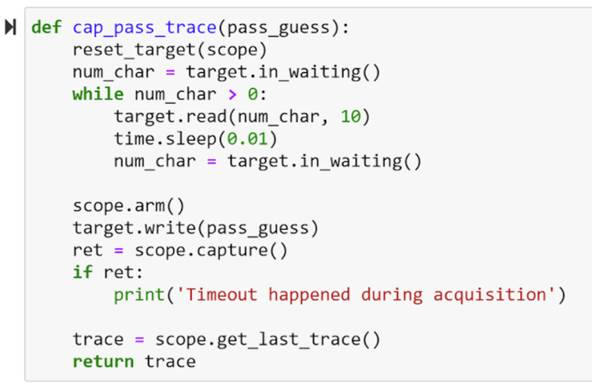

Very good lab. I am trying to track down where the OpenADC scope is getting its’ powerline data. The return power trace function has the scope commands:

The Scope.Arm() command seems to be the best place to look.

  1. Where is this code in the CW folder? I found several locations that have OpenADC python code. (C:\chipwhisperer\software\chipwhisperer\capture\scopes) and ( C:\chipwhisperer\openadc\controlsw\python\openadc).

  2. The Scope.Arm() code uses a Trigger signal to synch the hardware and software on the Chip Whisperer. Where can you measure this signal on the board? Is it on one of the I/O ports? Or another one of the pins?

Thanks

Hi,

You’ll mostly want to look in chipwhisperer/capture/scopes/_OpenADCInterface.py. For the FPGA, the openadc folder is the correct place to look, but I’m not very familiar with that part of the code.

Alex
