Running the “1-Connecting to Hardware” notebook with an CW Husky, all fine except programming is failing with a timeout when running cw.program_target(scope, cw.programmers.SAM4SProgrammer, "../firmware/mcu/simpleserial-base/simpleserial-base-CWHUSKY.hex")
Running off the latest CW 6.0.0 dev branch on a Linux fresh install of Ubuntu 22. What am I missing here?
Error trace below:
OSError Traceback (most recent call last)
Cell In[20], line 4
1 #cw.program_target(scope, cw.programmers.XMEGAProgrammer, “path/to/firmware.hex”)
2 #cw.program_target(scope, cw.programmers.STM32FProgrammer, “path/to/firmware.hex”)
3 #cw.program_target(scope, cw.programmers.AVRProgrammer, “path/to/firmware.hex”)
----> 4 cw.program_target(scope, cw.programmers.SAM4SProgrammer, “…/firmware/mcu/simpleserial-base/simpleserial-base-CWHUSKY.hex”)
File ~/chipwhisperer/software/chipwhisperer/init.py:181, in program_target(scope, prog_type, fw_path, **kwargs)
179 prog._logging = None
180 prog.open()
→ 181 prog.find()
182 prog.erase()
183 prog.program(fw_path, memtype=“flash”, verify=True)
File ~/chipwhisperer/software/chipwhisperer/capture/api/programmers.py:129, in save_and_restore_pins..func_wrapper(self, *args, **kwargs)
126 target_logger.debug(‘Changing {} pin configuration’.format(pin_setup))
128 try:
→ 129 val = func(self, *args, **kwargs)
130 finally:
131 target_logger.debug(‘Restoring {} pin configuration’.format(pin_setup))
File ~/chipwhisperer/software/chipwhisperer/capture/api/programmers.py:185, in SAM4SProgrammer.find(self, power_cycle)
183 prog = self.get_prog()
184 target_logger.info(“Connecting to SAMBA”)
→ 185 prog.con(self.scope)
186 target_logger.info(“Done!”)
File ~/chipwhisperer/software/chipwhisperer/hardware/naeusb/bootloader_sam3u.py:250, in Samba.con(self, port, usbmode)
247 res = ser.read(2)
248 # print(res)
→ 250 cid = self.chip_id()
252 target_logger.info(‘FWUP: CID = %04x’ % cid)
254 #Originally this was used to limit to SAM3U
255 #eproc = (cid >> 5) & 0x7
256 #arch = (cid >> 20) & 0xff
257 #if eproc == 3 and ((0x80 <= arch <= 0x8a) or (0x93 <= arch <= 0x9a)):
258 # target_logger.info(‘FWUP: Detected SAM3’)
File ~/chipwhisperer/software/chipwhisperer/hardware/naeusb/bootloader_sam3u.py:308, in Samba.chip_id(self)
305 def chip_id(self):
306 “”" Read chip-id “”"
→ 308 vector = self.read_word(0x00)
310 # If the vector is a ARM7TDMI branch, then assume Atmel SAM7 registers
311 if ((vector & 0xff000000) == 0xea000000):
File ~/chipwhisperer/software/chipwhisperer/hardware/naeusb/bootloader_sam3u.py:333, in Samba.read_word(self, addr)
331 if len(resp) < 4:
332 target_logger.debug(“Timeout on read from {:04X}”.format(addr))
→ 333 raise IOError(“timeout”)
335 value = (resp[3] << 24 | resp[2] << 16 | resp[1] << 8 | resp[0] << 0)
336 target_logger.debug(“Read {:04X} from {:02X}”.format(value, addr))
OSError: timeout
Can you post a picture of your CW313 board so that I can see the jumper settings?

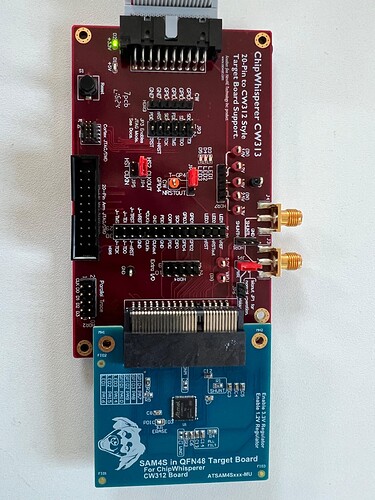

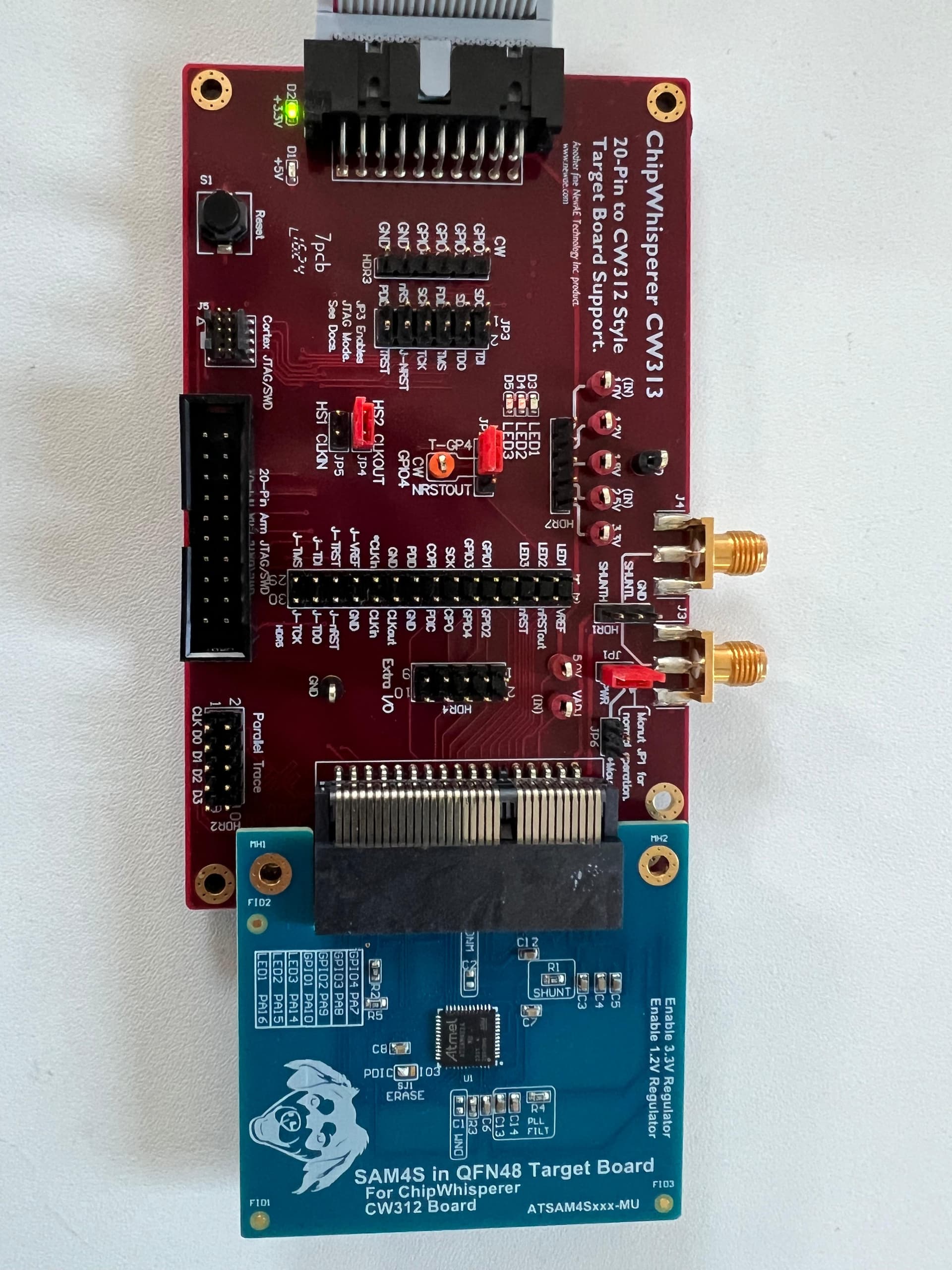

Thanks for the quick reply, here’s the board
Hi,
Can you post the output of print(scope) from just before you run the programming command?
Alex
I’m out of town for the week, will share EOW
print(scope) gives me
cwhusky Device
sn = 50203220325531583130343237323036
fpga_buildtime = 12/11/2024, 12:33
fw_version =
major = 1
minor = 5
debug = 0
gain =
mode = high
gain = 22
db = 25.091743119266056
adc =
state = False
basic_mode = rising_edge
timeout = 2
offset = 0
presamples = 0
samples = 5000
decimate = 1
trig_count = 2
stream_mode = False
test_mode = False
bits_per_sample = 12
segments = 1
segment_cycles = 0
segment_cycle_counter_en = False
clip_errors_disabled = False
lo_gain_errors_disabled = False
errors = trigger too soon error,
clock =
clkgen_src = system
clkgen_freq = 7363636.363636363
adc_mul = 4
adc_freq = 29454545.454545453
adc_rate = 29454545.454545453
freq_ctr = 0
freq_ctr_src = extclk
clkgen_locked = True
adc_phase = 0.0
extclk_monitor_enabled = False
extclk_error = False
extclk_tolerance = 1144409.1796875
trigger =
sequencer_enabled = False
module = basic
triggers = tio4
io =
tio1 = serial_rx
tio2 = serial_tx
tio3 = high_z
tio4 = high_z
pdid = high_z
pdic = high_z
nrst = high_z
glitch_hp = False
glitch_lp = False
extclk_src = hs1
hs2 = clkgen
target_pwr = True
tio_states = (1, 1, 1, 0)
cdc_settings = bytearray(b'\x00\x00\x00\x00')
aux_io_mcx = high_z
glitch_trig_mcx = trigger
glitch =
enabled = False
num_glitches = 1
clk_src = target
mmcm_locked = False
width = 0
offset = 0
trigger_src = manual
arm_timing = after_scope
ext_offset = 0
repeat = 1
output = clock_xor
phase_shift_steps = 4592
SAD =
threshold = 0
interval_threshold = 1
trigger_sample = 256
sad_reference_length = 256
emode = False
multiple_triggers = False
num_triggers_seen = 0
always_armed = False
ADS4128 =
mode = normal
low_speed = True
hi_perf = 2
LA =
present = True
enabled = False
clkgen_enabled = False
locked = False
clk_source = pll
trigger_source = glitch
oversampling_factor = 1
sampling_clock_frequency = 0.0
downsample = 1
capture_group = glitch
capture_depth = 0
trace =
present = True
enabled = False
errors = False
trace_synced = False
trace_mode = parallel
trace_width = 4
clock =
fe_clock_alive = True
fe_clock_src = usb_clock
clkgen_enabled = False
fe_freq = 96000000.0
swo_clock_locked = False
swo_clock_freq = 0.0
capture =
trigger_source = firmware trigger
use_husky_arm = False
raw = True
rules_enabled = []
rules = []
mode = while_trig
count = 0
max_triggers = 1
triggers_generated = 0
record_syncs = False
matched_pattern_data = 0000000000000000
matched_pattern_counts = [0, 0, 0, 0, 0, 0, 0, 0]
XADC =
status = good
temp = 37.2 [C]
max_temp = 38.8 [C]
temp_trigger = 80.0 [C]
temp_reset = 59.9 [C]
ot_temp_trigger = 84.9 [C]
ot_temp_reset = 59.9 [C]
vccint = 1.001 [V]
vccaux = 1.805 [V]
vccbram = 1.003 [V]
userio =
mode = normal
direction = 0
drive_data = 0
status = 511
Individual pins =
pin D0 = Target-driven, value = 1
pin D1 = Target-driven, value = 1
pin D2 = Target-driven, value = 1
pin D3 = Target-driven, value = 1
pin D4 = Target-driven, value = 1
pin D5 = Target-driven, value = 1
pin D6 = Target-driven, value = 1
pin D7 = Target-driven, value = 1
pin CK = Target-driven, value = 1
LEDs =
setting = 0 (default, as labelled)
errors =
sam_errors = False
sam_led_setting = Default
XADC errors = False
ADC errors = trigger too soon error,
extclk error = False
trace errors = False
FYI scope.default_setup() gives me this:
scope.gain.mode changed from low to high
scope.gain.gain changed from 0 to 22
scope.gain.db changed from 15.0 to 25.091743119266056
scope.adc.samples changed from 131124 to 5000
scope.clock.clkgen_freq changed from 0 to 7363636.363636363
scope.clock.adc_freq changed from 0 to 29454545.454545453
scope.clock.adc_rate changed from 0.0 to 29454545.454545453
scope.io.tio1 changed from serial_tx to serial_rx
scope.io.tio2 changed from serial_rx to serial_tx
scope.io.hs2 changed from None to clkgen
scope.io.cdc_settings changed from bytearray(b'\x01\x00\x00\x00') to bytearray(b'\x00\x00\x00\x00')
scope.glitch.phase_shift_steps changed from 0 to 4592
scope.trace.capture.trigger_source changed from trace trigger, rule #0 to firmware trigger
I started playing with the labs in sca101 and found by accident that I could run lab 2_1A: I could tun the setup as in compile and upload the firmware and capture a trace. Tryinf to upload a new firmware however results in the same timeout. When I unplug the CW and reset the kernel (sometimes twice) I can get it to work again for once.
Your settings look good, I’m not too sure what’s going on here. Could you try pulling the latest commit and running cw.target_logger.setLevel(cw.logging.DEBUG) before programming?
Yes looks like this
(ChipWhisperer Target DEBUG|File programmers.py:112) Saving ['pdic', 'pdid', 'nrst', 'tio3'] pin configuration
(ChipWhisperer Target DEBUG|File programmers.py:121) pdic was high_z
(ChipWhisperer Target DEBUG|File programmers.py:121) pdid was high_z
(ChipWhisperer Target DEBUG|File programmers.py:121) nrst was high_z
(ChipWhisperer Target DEBUG|File programmers.py:121) tio3 was high_z
(ChipWhisperer Target DEBUG|File programmers.py:126) Changing ['pdic', 'pdid', 'nrst', 'tio3'] pin configuration
(ChipWhisperer Target INFO|File programmers.py:165) Toggling erase(pdic)/nrst pins
(ChipWhisperer Target INFO|File programmers.py:184) Connecting to SAMBA
(ChipWhisperer Target INFO|File serial.py:121) Serial baud rate = 115200
(ChipWhisperer Target INFO|File bootloader_sam3u.py:243) AutoBaud:
(ChipWhisperer Target INFO|File bootloader_sam3u.py:244) bytearray(b'')
(ChipWhisperer Target INFO|File bootloader_sam3u.py:249) Setting binary mode result: bytearray(b'')
(ChipWhisperer Target DEBUG|File bootloader_sam3u.py:327) Read word from 00
(ChipWhisperer Target DEBUG|File bootloader_sam3u.py:333) Timeout on read from 0000
(ChipWhisperer Target DEBUG|File programmers.py:131) Restoring ['pdic', 'pdid', 'nrst', 'tio3'] pin configuration
(ChipWhisperer Target DEBUG|File programmers.py:133) pdic setting to high_z
(ChipWhisperer Target DEBUG|File programmers.py:133) pdid setting to high_z
(ChipWhisperer Target DEBUG|File programmers.py:133) nrst setting to high_z
(ChipWhisperer Target DEBUG|File programmers.py:133) tio3 setting to high_z
---------------------------------------------------------------------------
OSError Traceback (most recent call last)
Cell In[6], line 4
1 #cw.program_target(scope, cw.programmers.XMEGAProgrammer, "path/to/firmware.hex")
2 #cw.program_target(scope, cw.programmers.STM32FProgrammer, "path/to/firmware.hex")
3 #cw.program_target(scope, cw.programmers.AVRProgrammer, "path/to/firmware.hex")
----> 4 cw.program_target(scope, cw.programmers.SAM4SProgrammer, "../firmware/mcu/simpleserial-base/simpleserial-base-CWHUSKY.hex")
File ~/chipwhisperer/software/chipwhisperer/__init__.py:181, in program_target(scope, prog_type, fw_path, **kwargs)
179 prog._logging = None
180 prog.open()
--> 181 prog.find()
182 prog.erase()
183 prog.program(fw_path, memtype="flash", verify=True)
File ~/chipwhisperer/software/chipwhisperer/capture/api/programmers.py:129, in save_and_restore_pins.<locals>.func_wrapper(self, *args, **kwargs)
126 target_logger.debug('Changing {} pin configuration'.format(pin_setup))
128 try:
--> 129 val = func(self, *args, **kwargs)
130 finally:
131 target_logger.debug('Restoring {} pin configuration'.format(pin_setup))
File ~/chipwhisperer/software/chipwhisperer/capture/api/programmers.py:185, in SAM4SProgrammer.find(self, power_cycle)
183 prog = self.get_prog()
184 target_logger.info("Connecting to SAMBA")
--> 185 prog.con(self.scope)
186 target_logger.info("Done!")
File ~/chipwhisperer/software/chipwhisperer/hardware/naeusb/bootloader_sam3u.py:251, in Samba.con(self, port, usbmode)
248 res = ser.read(2)
249 target_logger.info("Setting binary mode result: " + str(res))
--> 251 cid = self.chip_id()
253 target_logger.info('FWUP: CID = %04x' % cid)
255 #Originally this was used to limit to SAM3U
256 #eproc = (cid >> 5) & 0x7
257 #arch = (cid >> 20) & 0xff
258 #if eproc == 3 and ((0x80 <= arch <= 0x8a) or (0x93 <= arch <= 0x9a)):
259 # target_logger.info('FWUP: Detected SAM3')
File ~/chipwhisperer/software/chipwhisperer/hardware/naeusb/bootloader_sam3u.py:309, in Samba.chip_id(self)
306 def chip_id(self):
307 """ Read chip-id """
--> 309 vector = self.read_word(0x00)
311 # If the vector is a ARM7TDMI branch, then assume Atmel SAM7 registers
312 if ((vector & 0xff000000) == 0xea000000):
File ~/chipwhisperer/software/chipwhisperer/hardware/naeusb/bootloader_sam3u.py:334, in Samba.read_word(self, addr)
332 if len(resp) < 4:
333 target_logger.debug("Timeout on read from {:04X}".format(addr))
--> 334 raise IOError("timeout")
336 value = (resp[3] << 24 | resp[2] << 16 | resp[1] << 8 | resp[0] << 0)
337 target_logger.debug("Read {:04X} from {:02X}".format(value, addr))
OSError: timeout
It doesn’t look like your SAM4S is responding at all. I’ll play around with the bootloader entry code to see if there’s anything unreliable there.
Thanks Alex. Let me know if I can contribute
