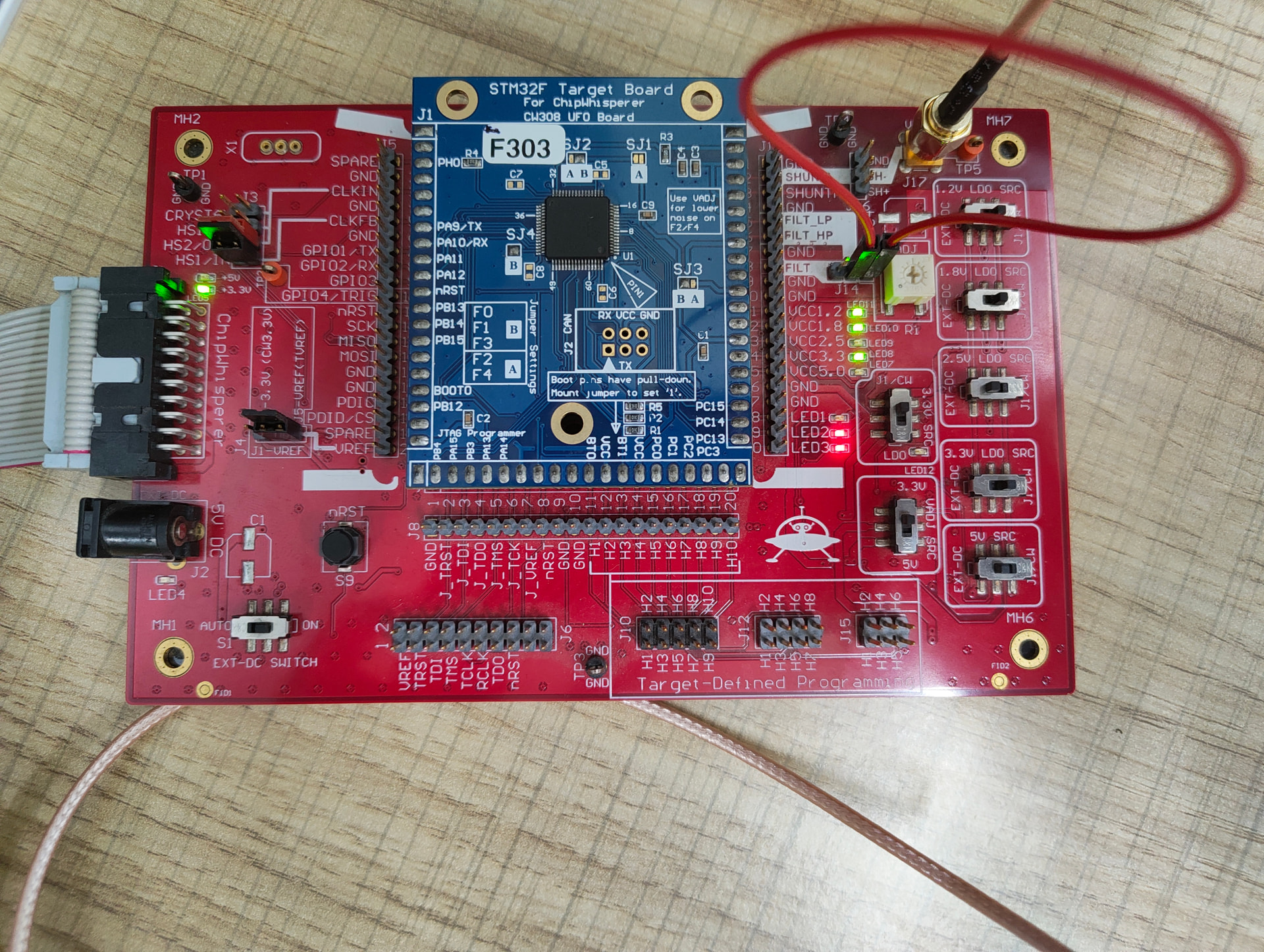

Hardware Used: CWLITEARM + CW308_STM32F303
I have been trying to reset the nonce_val in between the two cbd function calls. I had initially defined nonce_val using volatile which gave a successful result (probably due to the longer attack duration given by ldr adds and str ). Now that I remove the volatile definition, this doesn’t seem to work at all. I am not sure if the width and offset setting have changed or not but the ext_offset has definitely changed as seen the assembly.
If i am doing anything wrong please do correct me. i am still learning to use this platform and want to extend it beyond the tutorials. the files i am sending now are the updated files (without volatile)
you can see the jupyter notebook i have used here: reference to my notebook
Thanks
Rohit
The glitch setting which worked for me then (when I defined nonce_val with volatile) were:
scope.glitch.output = "glitch_only"
scope.glitch.trigger_src = "ext_single"
scope.io.hs2 = "clkgen"
// trig_count= 53492 {as found through scope.adc.trig_count}
gc.set_range("width", 1.4, 2.2)
gc.set_step("width", 0.1) # fine resolution(it may have worked without the fine setting)
gc.set_range("offset", -5, -3)
gc.set_step("offset", 0.4)
gc.set_range("ext_offset", trig_count//8 - 500, trig_count//8 + 300)
gc.set_step("ext_offset", 1)
ss-glitch.c
#include "hal.h"
#include <stdint.h>
#include <stdlib.h>
#include "simpleserial.h"
#include "cbd_dummy.h" //to mimic the polycbd kind of call from indcpa.h // required to prevent loop unrolling and simplification
//uint8_t infinite_loop(uint8_t* in);
//uint8_t glitch_loop(uint8_t* in);
//uint8_t password(uint8_t* pw);
// Make sure no optimization happens for demo glitch logic.
// #pragma GCC push_options
// #pragma GCC optimize ("O0")
#if SS_VER == SS_VER_2_1
uint8_t glitch_loop(uint8_t cmd, uint8_t scmd, uint8_t len, uint8_t* in)
#else
uint8_t glitch_loop(uint8_t* in, uint8_t len)
#endif
{
uint16_t i;
uint32_t nonce_val = 0;
trigger_high();
//k=2 for mlkem512
for(i=0; i<2; i++){
//mimicking the cbd operation
cbd_dummy(nonce_val) ;
nonce_val++;
}
for(i=0; i<2; i++){
//mimicking the cbd operation
cbd_dummy(nonce_val) ;
nonce_val++;
}
trigger_low();
simpleserial_put('r', 4, (uint8_t*)&nonce_val);
#if SS_VER == SS_VER_2_1
return (nonce_val == 2) ? 0x10 : (nonce_val ==4)? 0x00 : (nonce_val>2)? 0xe0:0xf0; //==2 means glitch has occurred in between the for loops and nonce_val is reset to 0
#else
return (nonce_val != 4);
#endif
}
#if SS_VER == SS_VER_2_1
uint8_t glitch_comparison(uint8_t cmd, uint8_t scmd, uint8_t len, uint8_t* in)
#else
uint8_t glitch_comparison(uint8_t* in, uint8_t len)
#endif
{
uint8_t ok = 5;
trigger_high();
if (*in == 0xA2){
ok = 1;
} else {
ok = 0;
}
trigger_low();
simpleserial_put('r', 1, (uint8_t*)&ok);
return 0x00;
}
// #pragma GCC pop_options
int main(void)
{
platform_init();
init_uart();
trigger_setup();
/* Device reset detected */
putch('r');
putch('R');
putch('E');
putch('S');
putch('E');
putch('T');
putch(' ');
putch(' ');
putch(' ');
putch('\n');
simpleserial_init();
simpleserial_addcmd('g', 0, glitch_loop);
simpleserial_addcmd('c', 1, glitch_comparison);
while(1)
simpleserial_get();
}
cbd_dummy.c
#include <stdint.h>
// defined in separate TU so compiler cannot inline or optimize away
void __attribute__((noinline)) cbd_dummy(uint32_t nonce) {
volatile uint16_t s_val;
for(s_val = 0; s_val < 256; s_val++) continue;
}
makefile
TARGET = ss-glitch
# List C source files here.
# Header files (.h) are automatically pulled in.
SRC += ss-glitch.c
SRC += cbd_dummy.c
# -----------------------------------------------------------------------------
CRYPTO_TARGET=NONE
#Add simpleserial project to build
include ../simpleserial/Makefile.simpleserial
FIRMWAREPATH = ../.
include $(FIRMWAREPATH)/Makefile.inc
the assembly code concerning the glitch loop:
08000260 <glitch_loop>:
#if SS_VER == SS_VER_2_1
uint8_t glitch_loop(uint8_t cmd, uint8_t scmd, uint8_t len, uint8_t* in)
#else
uint8_t glitch_loop(uint8_t* in, uint8_t len)
#endif
{
8000260: b513 push {r0, r1, r4, lr}
uint16_t i;
uint32_t nonce_val = 0;
8000262: 2400 movs r4, #0
8000264: 9401 str r4, [sp, #4]
trigger_high();
8000266: f000 fa57 bl 8000718 <trigger_high>
//k=2 for mlkem512
for(i=0; i<2; i++){
//mimicking the cbd operation
cbd_dummy(nonce_val) ;
800026a: 9801 ldr r0, [sp, #4]
800026c: f000 f87a bl 8000364 <cbd_dummy>
nonce_val++;
8000270: 9801 ldr r0, [sp, #4]
8000272: 3001 adds r0, #1
8000274: 9001 str r0, [sp, #4]
cbd_dummy(nonce_val) ;
8000276: f000 f875 bl 8000364 <cbd_dummy>
nonce_val++;
800027a: 9801 ldr r0, [sp, #4]
800027c: 3001 adds r0, #1
800027e: 9001 str r0, [sp, #4]
}
for(i=0; i<2; i++){
//mimicking the cbd operation
cbd_dummy(nonce_val) ;
8000280: f000 f870 bl 8000364 <cbd_dummy>
nonce_val++;
8000284: 9801 ldr r0, [sp, #4]
8000286: 3001 adds r0, #1
8000288: 9001 str r0, [sp, #4]
cbd_dummy(nonce_val) ;
800028a: f000 f86b bl 8000364 <cbd_dummy>
nonce_val++;
800028e: 9b01 ldr r3, [sp, #4]
8000290: 3301 adds r3, #1
8000292: 9301 str r3, [sp, #4]
}
trigger_low();
8000294: f000 fa47 bl 8000726 <trigger_low>
simpleserial_put('r', 4, (uint8_t*)&nonce_val);
8000298: aa01 add r2, sp, #4
800029a: 2104 movs r1, #4
800029c: 2072 movs r0, #114 @ 0x72
800029e: f000 f8d3 bl 8000448 <simpleserial_put>
#if SS_VER == SS_VER_2_1
return (nonce_val == 2) ? 0x10 : (nonce_val ==4)? 0x00 : (nonce_val>2)? 0xe0:0xf0; //==2 means glitch has occurred in between the for loops and nonce_val is reset to 0
80002a2: 9b01 ldr r3, [sp, #4]
80002a4: 2b02 cmp r3, #2
80002a6: d007 beq.n 80002b8 <glitch_loop+0x58>
80002a8: 2b04 cmp r3, #4
80002aa: d007 beq.n 80002bc <glitch_loop+0x5c>
80002ac: 2b03 cmp r3, #3
80002ae: bf34 ite cc
80002b0: 20f0 movcc r0, #240 @ 0xf0
80002b2: 20e0 movcs r0, #224 @ 0xe0
#else
return (nonce_val != 4);
#endif
}
80002b4: b002 add sp, #8
80002b6: bd10 pop {r4, pc}
return (nonce_val == 2) ? 0x10 : (nonce_val ==4)? 0x00 : (nonce_val>2)? 0xe0:0xf0; //==2 means glitch has occurred in between the for loops and nonce_val is reset to 0
80002b8: 2010 movs r0, #16
80002ba: e7fb b.n 80002b4 <glitch_loop+0x54>
80002bc: 4620 mov r0, r4
80002be: e7f9 b.n 80002b4 <glitch_loop+0x54>
