What is power consumption's unit

Embedded Security Side Channel Power Analysis
1

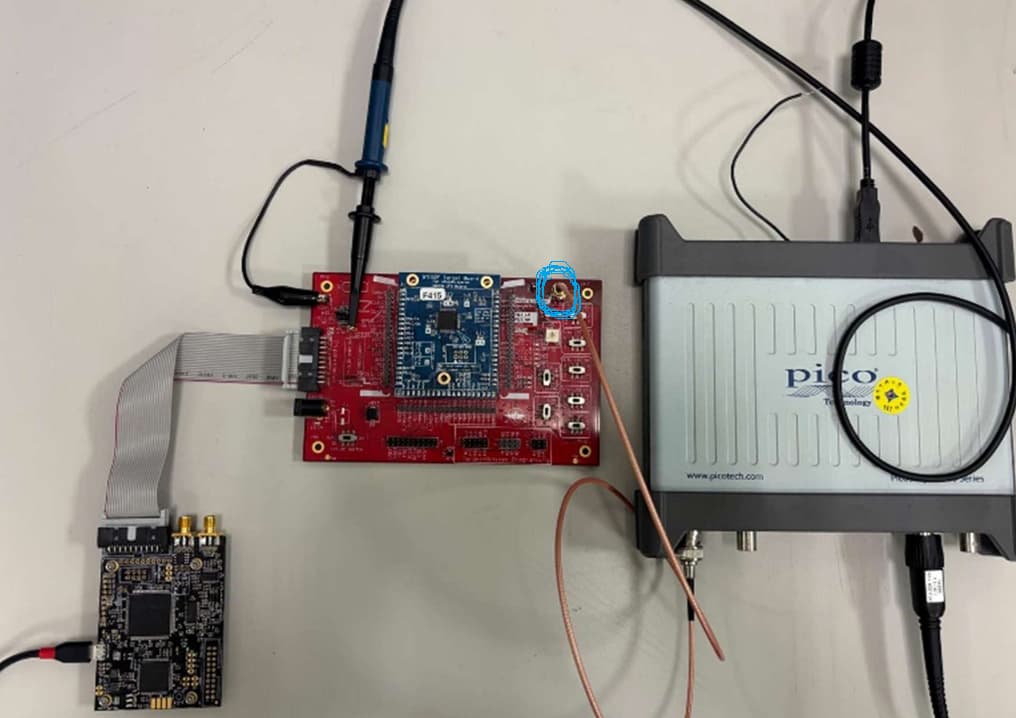

image1016×718 53.4 KB

After reading What is the unit of power measured by Chipwhisperer Capture? - Embedded Security / ChipWhisperer Hardware - NewAE Forum
Is the unit of power consumption in the blue circle also related to the power drop across the sense resistor?
If not, how can I know or measure the unit of power consumption in the blue circle?
在看過連結內容之後，請問藍圈內的功率消耗的單位也是要根據sense resistor 的設定才能知道嗎?
如果不是，我應該怎麼做才能測量或得知藍圈內的功率消耗的單位呢?

2

Yes, assuming your oscilloscope is AC-coupled, you’re just measuring the AC voltage drop across the resistor.

1 Like
3

thank you for replying my question!
