Where can we see the shunt resistor on CW308 UFO board?

1

Hi all,
As the title goes, I just could not find a resistor in the red box in the snapshot. I tried to measure the resistance between SHUNTL and the GND pin, and it is merely 350 Ohms, is it the resistor we’re looking for?

where_is_the_shunt_resistor

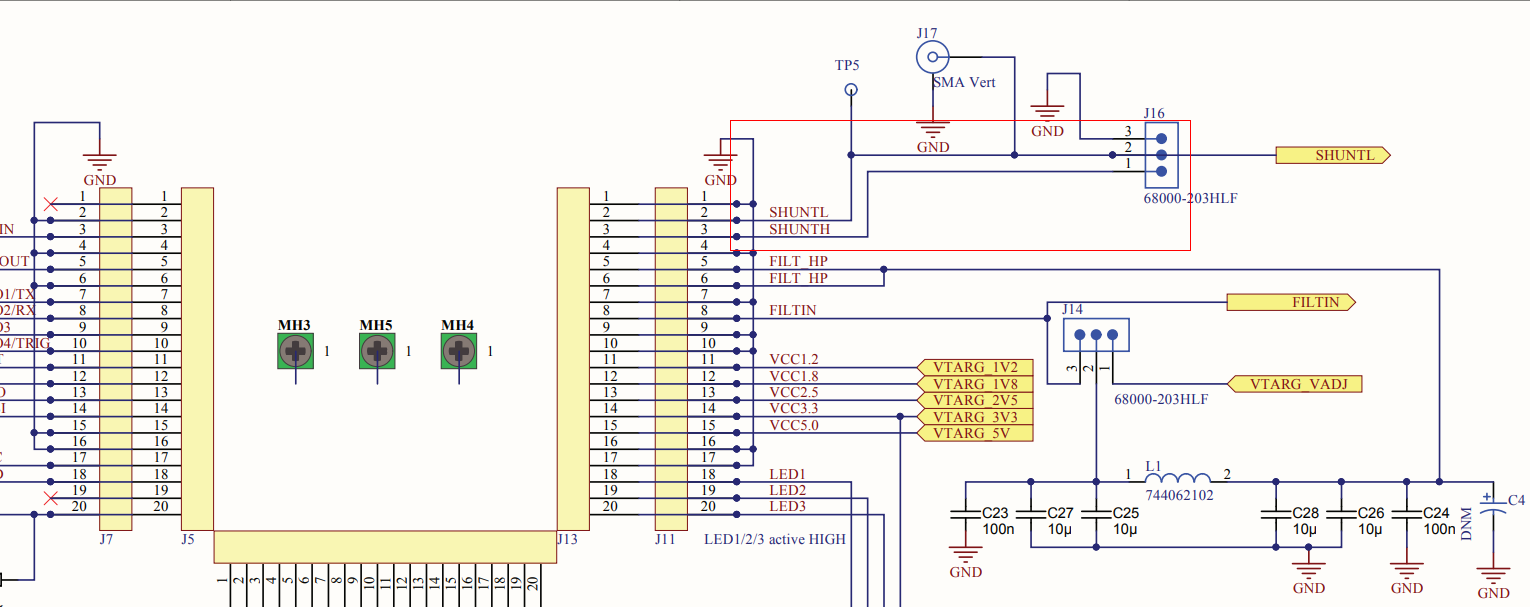

where_is_the_shunt_resistor1531×608 106 KB

Alan.

2

Hi,

There’s no shunt resistor on the CW308 board itself - the shunt resistor is on the target board that
you are using. We list shunt resistor values for boards on our hardware docs page: https://rtfm.newae.com/

Alex

1 Like
